| Amperage Rating | : | 16.7 A |
| CFM Rating | : | 2800 cfm |
| Cooling Capacity | : | 24000 Btu/hr |
| Dimensions | : | 23 in H x 22-3/4 in W x 22-3/4 in D |
| EER Rating | : | 11.5 |
| Face Area | : | 11.5 sq-ft |
| Finish | : | Galvanized/Polyester Urethane-Coated |
| Fins per Inch | : | 16 FPI |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HP Rating | : | 1/8 hp |
| Liquid Line Size | : | 3/8 in |
| Material | : | Steel |
| Motor Type | : | PSC |
| Nominal Capacity | : | 2 ton |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13 |
| Series | : | JS4BD Series |
| Sound Level | : | 72 dBA |
| Suction Line Size | : | 3/4 in |
| Voltage Rating | : | 208/230 V |

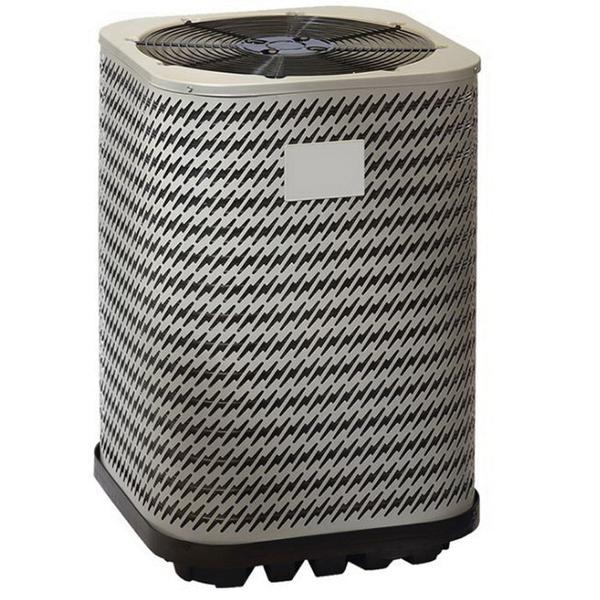

Gibson® Split-System Air Conditioner, JS4BD Series, 2 ton Nominal Capacity, 24000 Btu/hr Cooling Capacity, 208/230 V, 16.7 A, 1/8 hp, 60 Hz, 1 ph Phase, 2800 cfm, 11.5 EER Rating, 13 SEER, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 72 dBA Sound Level, 25 A Fuse Rating, 11.5 sq-ft Face Area, PSC Motor, 16 FPI Fins per Inch, Steel, Finish: Galvanized/Polyester Urethane-Coated, 23 in H x 22-3/4 in W x 22-3/4 in D
- Design series
- Braze 13 SEER
- Revision code
- Earth friendly non-ozone depleting refrigerant
- Designed using galvanized steel with a polyester urethane coat finish, 950 hr salt spray finish is 1.5 mil thick and resists corrosion 50% better than comparable units
- Composite base pan absorbs sound and is corrosion-resistant, composite is also stronger and lighter than steel
- Permanently lubricated condenser heavy-duty PSC motor for long-lasting reliability and quiet operation, requires no maintenance and is completely protected from rain and snow
- Removable top grille assembly - allows ease of service from the top without disconnecting fan motor leads
- High-pressure switch protects against abnormally high-system pressures, auto reset feature prevents nuisance service visits
- Liquid line filter drier included with unit, field installed
- One-piece top orifice designed for maximum airflow and quiet operation
- Easy compressor and control access designed to make servicing easier for the contractor, access panels are provided to all controls and the compressor from the side of the unit
- Complete metal wrapper durable metal guard protects the coil from yard hazards and extreme weather
