| AFUE Rating | : | 92.1% |
| Amperage Rating | : | 13.75 A Full Load Motor |
| Blower Size | : | 11 in W x 10 in Dia |
| CFM Rating | : | 1910 cu-ft/min at 0.5 in WC ESP |
| Cabinet Dimensions | : | 24-1/2 in W x 34-1/2 in H x 28 in D |
| Configuration | : | Upflow/Horizontal |
| Connection Type | : | 1/2 in NPT |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1 hp |
| Input BTU Rating | : | 120000 Btu/hr |
| Model | : | KG7SC 120D-45D |
| Motor Type | : | PSC |
| Number of Speeds | : | 4 |
| Output BTU Rating | : | 110400 Btu/hr |
| Series | : | KG7SC |
| Temperature Rise | : | 40 - 70 deg F |
| Tonnage | : | 4 - 5 ton |
| Voltage Rating | : | 115 V |

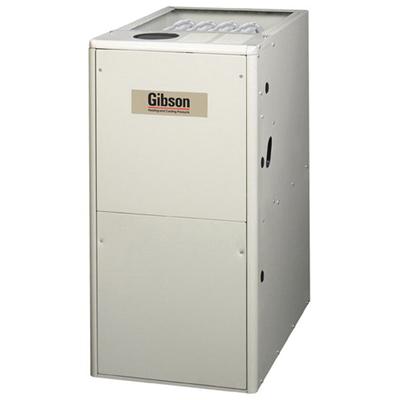

Gibson® Gas Furnace, Series: KG7SC, KG7SC 120D-45D Model, 120000 Btu/hr Input BTU Rating, 110400 Btu/hr Output BTU Rating, 115 V, 13.75 A Full Load Motor, 1910 cu-ft/min at 0.5 in WC ESP, 1 hp, 92.1% AFUE, 60 Hz, Configuration: Upflow/Horizontal, 1/2 in NPT Connection, Natural Gas Fuel, 4 -Speed, 11 in W x 10 in Dia Blower Size, 24-1/2 in W x 34-1/2 in H x 28 in D Cabinet Dimensions, PSC Motor, 4 - 5 ton, 40 - 70 deg F Rise
- Gas Furnace
- Seven design Series
- 100% fired and tested - all units and each component are tested on the manufacturing line
- Best packaging in the industry - unique corner post design assures product will arrive to the homeowner dent-free
- Lowboy height - easy to apply in low ceiling applications, works well with taller high SEER coils, easier to handle and install
- Tubular primary heat exchanger - heavy gauge aluminized steel heat exchanger assures a long life
- 30 sec blower delay - at start-up assures a warm duct temperature at furnace start-up, adjustable blower off settings (60, 90, 120 and 180 sec)
- 30 sec post purge - increases life of heat exchanger
- Hot surface ignitor - innovative application of an appliance type ignitor with a 20 year history of reliability, utilizes proven Smartlite technology
- Color-coded wire harness - designed to fit the components, all with quick-connect fittings for ease of service and replacement
- High static blowers - all models equipped with high static blowers
- 90 sec cooling cycle blower-off delay (TDR) - increases cooling performance when matched with a Nordyne coil
- Flexible category IV venting system - may be vented with dedicated venting system or common vented with other category one appliances
- High efficiency blower kits - maximize efficiencies
- Multi-speed direct drive blower - designed to give a wide range of cooling capacities, switches on PCB, provide ultra easy motor speed selection
- LP convertible - simple burner orifice and regulator spring change for ease of convertibility
- Diagnostic lights for easy troubleshooting without counting flashes
- Integrated control board - incorporates connections for electronic air cleaner and humidifier
- Two piece door design - enhances furnace appearance and uses captured screws to prevent loosing door screws
- Low-NOx
