| AFUE Rating | : | 80% |
| Amperage Rating | : | 13.75 A Full Load Motor |
| Blower Size | : | 10 in W x 11 in Dia |
| Cabinet Dimensions | : | 24-1/2 in W x 34-1/2 in H x 28 in D |
| Configuration | : | Upflow/Horizontal |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1 hp |
| Input BTU Rating | : | 126000 Btu/hr |
| Model | : | KG7SA 126C-45D |
| Series | : | KG7SA |
| Temperature Rise | : | 40 - 70 deg F |
| Tonnage | : | 4 - 5 ton |

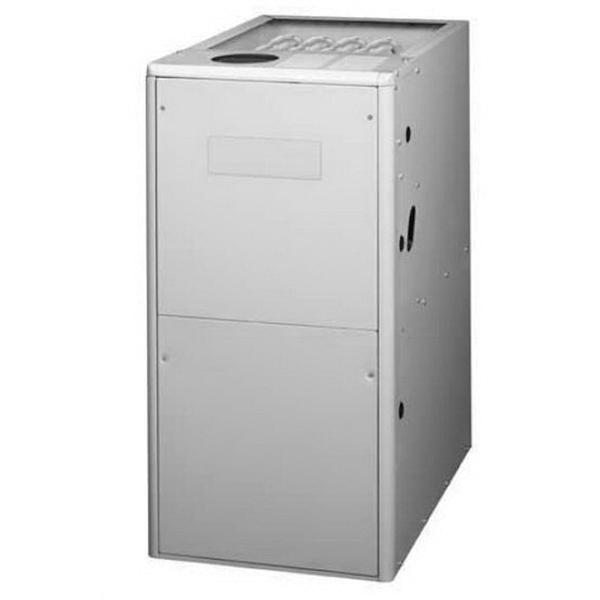

Gibson® Gas Furnace, Series: KG7SA, KG7SA 126C-45D Model, 126000 Btu/hr Input BTU Rating, 13.75 A Full Load Motor, 1 hp, 80% AFUE, Configuration: Upflow/Horizontal, Natural Gas Fuel, 10 in W x 11 in Dia Blower Size, 24-1/2 in W x 34-1/2 in H x 28 in D Cabinet Dimensions, 4 - 5 ton, 40 - 70 deg F Rise
- Gas Furnace
- 100% fired and tested - all units and each component (both mechanical and electrical) are tested on the manufacturing line
- Best packaging in the industry - unique corner post design assures product will arrive to the homeowner dent-free
- 30 sec blower delay - at start-up assures a warm duct temperature at furnace start-up, adjustable blower off settings (60, 90, 120 and 180 sec)
- 30 sec post-purge increases life of heat exchanger
- Hot surface igniter - innovative application of a silicon nitride type igniter, utilizes proven Smartlite technology
- Color-coded wire harness designed to fit the components, all with quick connect fittings for ease of service and replacement
- Flexible category IV venting system, may be vertically or horizontally vented using either a one-pipe or two-pipe system for maximum flexibility in installation
- High static blowers - all models equipped with high static blowers
- Low boy height - easy to apply in low ceiling applications, works well with taller high SEER coils, easier to handle and install
- Tubular primary heat exchanger with heavy gauge aluminized steel heat exchanger and stainless steel secondary heat exchanger assures a long life
- 90 sec fixed cooling cycle blower-off delay (TDR) - increases cooling performance when matched with a Nordyne coil
- High efficiency blower kits - maximize efficiencies
- Multi-speed direct drive blower - designed to give a wide range of cooling capacities, switches on PCB, provide ultra easy motor speed selection
- LP convertible - simple burner orifice and regulator spring change for ease of convertibility
- Diagnostic lights for easy troubleshooting without counting flashes - dedicated light for flame signal strength and 2 lights in combination to indicate all other fault codes with easy to recognize states without counting flashes
- Incorporates integrated control board with connections for electronic air cleaner, humidifier and twinning
- Two piece door design enhances furnace appearance and uses captured screws to prevent losing door screws
- Blower compartment sealed door to reduce air leakage and insulated for ultra quiet operation
- Sealed vestibule, Reduces burner and inducer sound levels
