| Additional Information | : | 14-3/8 in D Dimensions |
| Collection | : | Monitor™ |
| Color | : | White |
| Flush Rate | : | 0.125 to 1 gpf |
| Height | : | 27 in |
| Inlet Spud Size | : | 3/4 in |
| Length | : | 14-3/8 in |
| Material | : | Vitreous China |
| Mounting Type | : | Wall |
| Outlet Tap Size | : | 2 in |
| Spud Location | : | Top |
| Width | : | 19-1/4 in |
| Working Pressure | : | 20 to 80 psi |

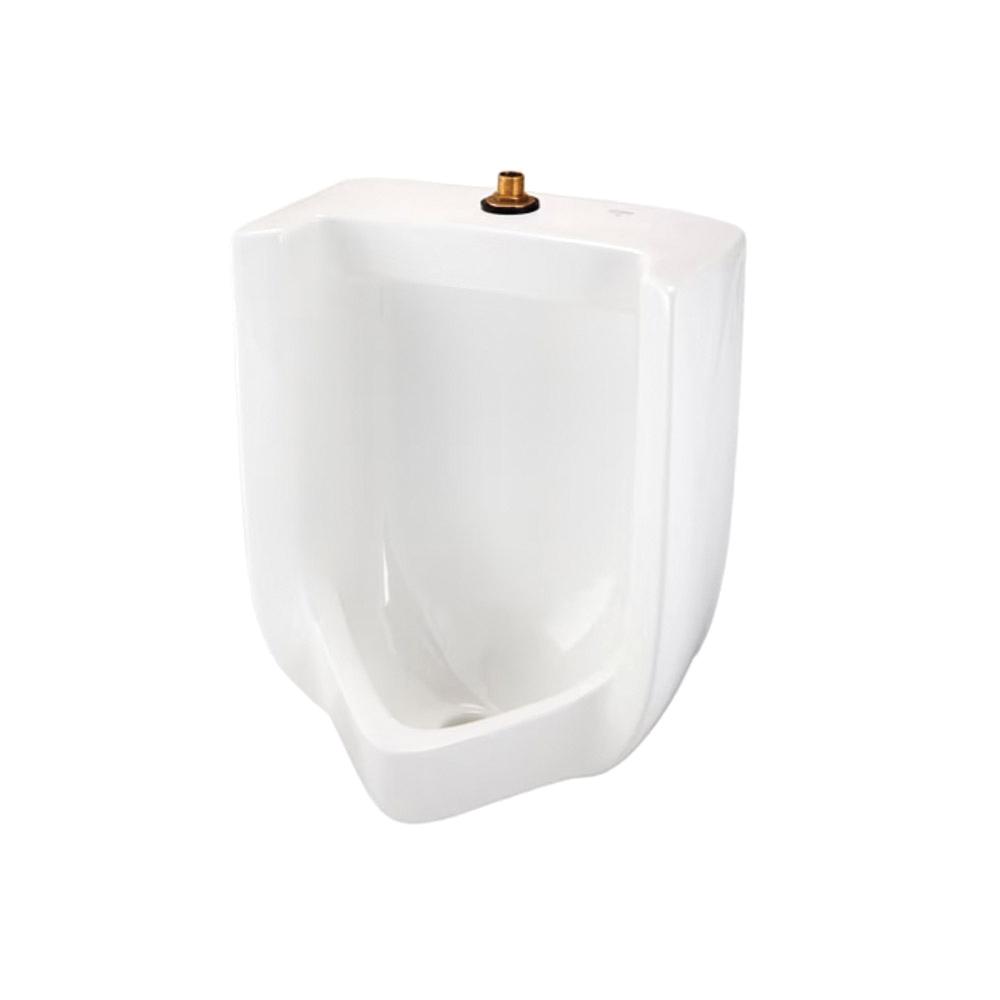

This washout wall hung urinal comes with a 3/4 in inlet top spud, washout flush action and 2 in outlet to ensure the best performance and reliability. It operates at an efficient 1.0 gpf (3.8 Lpf).
GERBER® Washout Urinal, Monitor™ Collection, 0.125 to 1 gpf Flush Rate, Top Spud Location, 3/4 in Inlet Spud, 2 in Outlet Tap, 20 to 80 psi Working Pressure, Wall Mounting, Vitreous China, White, 14-3/8 in Length, 19-1/4 in Width, 27 in Height, Additional Information: 14-3/8 in D Dimensions
- New and improved high efficiency urinal now with expanded consumptions of 0.125 gpf, 0.5 gpf and 1.0 gpf when used with the appropriate flush valve
- 2 in SPS female outlet connection supplied
- Dual wall hangers
- Extended shields
- For exposed flushometer (top spud) 1 x 3/4 in inlet
- Integral flush spreader
- Strainer not included
- Wall waste outlet
