| Additional Information | : | Powder-Coated Finish |
| Amperage Rating | : | 150 A |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 30 in |
| Interrupt Rating | : | 22 kA |
| Length | : | 6.3 in |
| Material | : | Aluminum |
| NEMA Rating | : | NEMA 3R |
| Number of Poles | : | 2 |
| Phase | : | 1 ph |
| Voltage Rating | : | 120/240 V |
| Width | : | 13-1/2 in |
| Wire Size | : | 6 AWG to 250 kcmil |

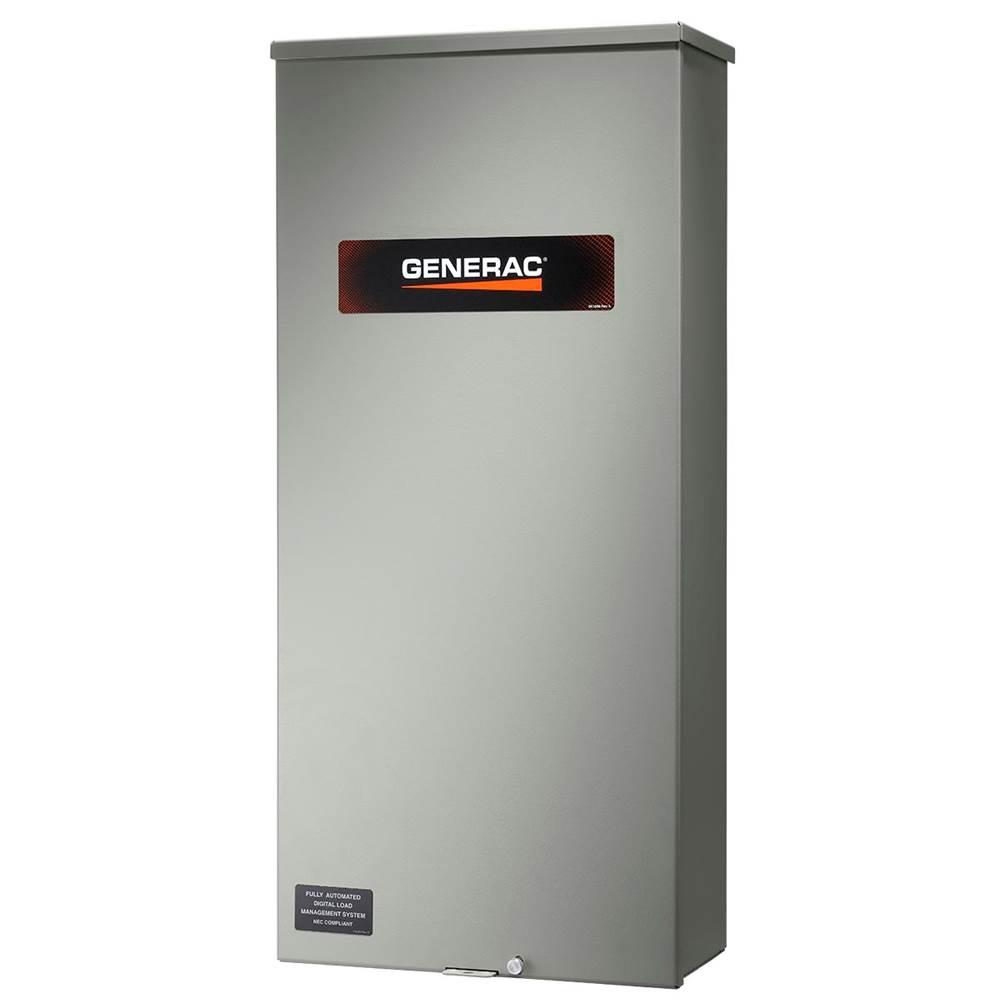

Featuring a NEMA 3R aluminum enclosure and heavy-duty Generac® contactor, this service entrance switch is designed for use with single phase generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.
Generac® Automatic Transfer Switch, 120/240 V, 150 A, 50/60 Hz, 1 ph Phase, 22 kA Interrupt Rating, 2 Poles, NEMA Rating: NEMA 3R, 6 AWG to 250 kcmil Wire, Aluminum, 6.3 in Length, 13-1/2 in Width, 30 in Height, Additional Information: Powder-Coated Finish
- A service entrance disconnect is a device that interrupts excessive voltage and allows for manually disconnecting your home or business from the electrical utility
- Designed to give options as to whether to install indoors or outdoors, this enclosure protects the internal components of the switch from rain, snow, ice and debris
