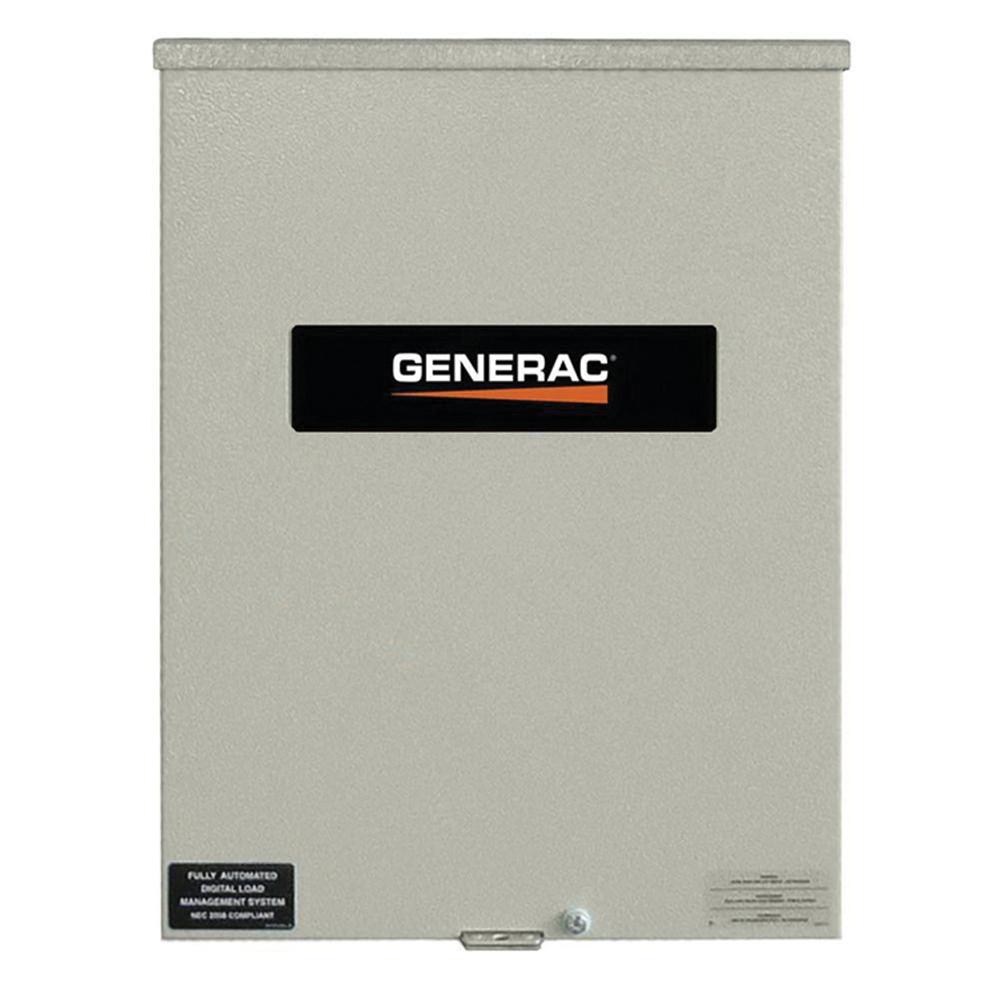

Generac® GNRRXSC100A3

Generac® RXSC100A3 Transfer Switch, 120/240 V, 100 A, 1 ph -Phase, Steel, NEMA 3R

Manufacturer: Generac Power Systems
Part #: GNRRXSC100A3
Customer Part #:
Login for Availability
Login for Price
Additional Information      :      7.1 in D, Baked Powder-Coated Finish
Amperage Rating      :      100 A
Height      :      20 in
Material      :      Steel
NEMA Rating      :      NEMA 3R
Phase      :      1 ph
Voltage Rating      :      120/240 V
Width      :      14.6 in
Wire Size      :      14 to 2/0 AWG

Featuring a NEMA 3R steel enclosure and heavy-duty Generac® contactor, this service entrance-rated switch is designed for use with 1 ph generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.

Generac® Transfer Switch, 120/240 V, 100 A, 1 ph Phase, NEMA Rating: NEMA 3R, 14 to 2/0 AWG Wire, Steel, 14.6 in Width, 20 in Height, Additional Information: 7.1 in D, Baked Powder-Coated Finish

  • Generac® automatic transfer switches are housed in an aluminum NEMA/UL-type 3R enclosure, with electro statically applied and baked powder paint
  • Heavy-duty Generac® contactor is a UL and cUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
  • Through the use of digital power technology, these switches have the capability to manage up to four individual HVAC (24 VAC controlled) loads with no additional hardware
  • When used in tandem with smart management modules, up to eight more loads can be managed as well, providing the most installation efficient power management options available
  • Cycles power on and off as needed for different appliances
  • Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Generac_RXSC100A3_Owners_User_Manual.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Generac_RXSC100A3_Specification_Sheet.pdf
  • Warranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Generac_RXG16EZA3_Warranty_Information.pdf
