| Additional Information | : | 6.9 in D, Baked Powder-Coated Finish |
| Amperage Rating | : | 100 A |
| Height | : | 30.1 in |
| Material | : | Aluminum |
| NEMA Rating | : | NEMA 3R |
| Phase | : | 1 ph |
| Voltage Rating | : | 120/240 V |
| Width | : | 13-1/2 in |
| Wire Size | : | 14 to 1/0 AWG |

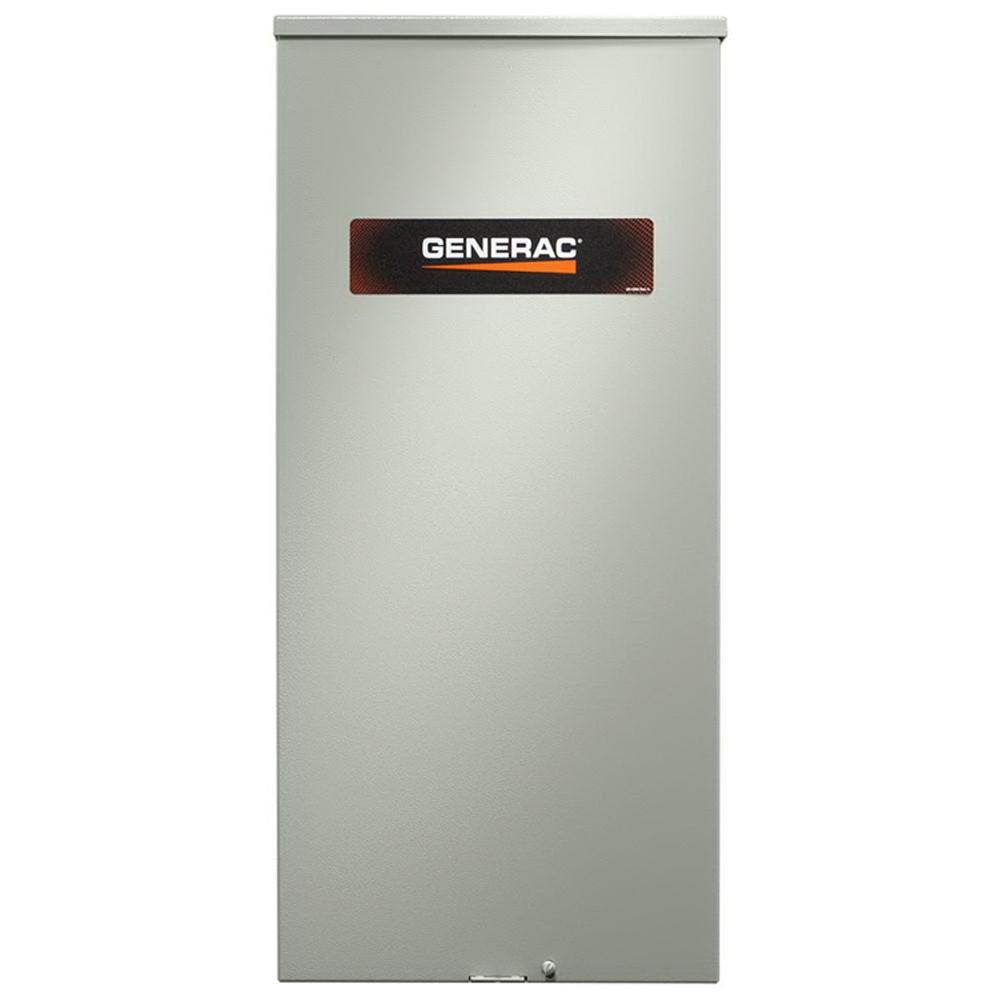

Housed in a NEMA 3R enclosure, this transfer switch has an integrated, 16 circuit load center. Designed to supply power to only those designated circuits, it ensures only the essentials are covered by the standby air cooled generator during an emergency.
Generac® Transfer Switch, 120/240 V, 100 A, 1 ph Phase, NEMA Rating: NEMA 3R, 14 to 1/0 AWG Wire, Aluminum, 13-1/2 in Width, 30.1 in Height, Additional Information: 6.9 in D, Baked Powder-Coated Finish
- Heavy-duty Generac® contactor is a UL and cUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
- Sixteen space breaker panel
- Suitable for use in optional standby systems
