| Additional Information | : | 10.1 in D, Baked Powder-Coated Finish |
| Amperage Rating | : | 400 A |
| Height | : | 48 in |
| Material | : | Steel |
| NEMA Rating | : | NEMA 3R |
| Phase | : | 1 ph |
| Voltage Rating | : | 120/240 V |
| Width | : | 21.8 in |
| Wire Size | : | 1/0 AWG to 250 kcmil, 4 AWG to 600 kcmil |
Featuring a NEMA 3R aluminum enclosure and heavy-duty Generac® contactor, this service entrance-rated switch is designed for use with 1 ph generators. Using the integrated load management technology, four individual HVAC loads can be managed with no additional accessories required.

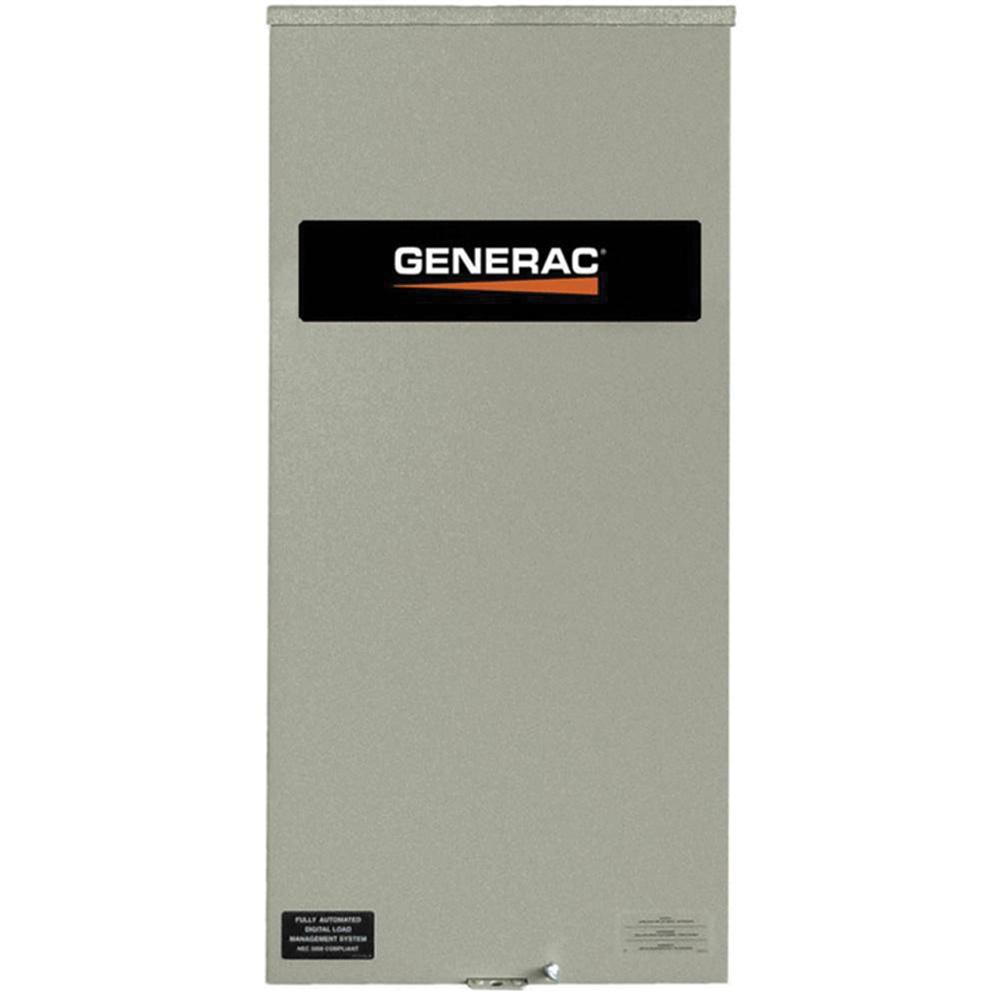

Generac® Transfer Switch, 120/240 V, 400 A, 1 ph Phase, NEMA Rating: NEMA 3R, 1/0 AWG to 250 kcmil, 4 AWG to 600 kcmil Wire, Steel, 21.8 in Width, 48 in Height, Additional Information: 10.1 in D, Baked Powder-Coated Finish
- Service-rated (RXSW) Generac® automatic transfer switches are housed in an aluminum NEMA/UL-type 3R enclosure with electro statically applied and baked powder paint
- The heavy-duty Generac® contactor is a UL recognized device, designed for years of service
- Digital power technology allows these switches to have the capability to manage up to four individual HVAC (24 VAC controlled) loads with no additional hardware
- When used in tandem with smart management modules, up to eight more loads can be managed as well, providing the most installation efficient power management options available
- Designed for use with 1 ph generators 60 kW and below
