| Amperage Rating | : | 138 mA |
| Coil Voltage | : | 24 VDC |
| Contact Configuration | : | DPDT |
| Drop Down Voltage | : | 3 VAC/3.8 VDC |
| Enclosure Type | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3.2 in |
| Operating Time | : | 18 ms |
| Pickup Voltage | : | 20 VAC/VDC |
| Temperature Rating | : | -30 to 140 deg F |
| Terminal Type | : | Wire |
| Width | : | 1.8 in |

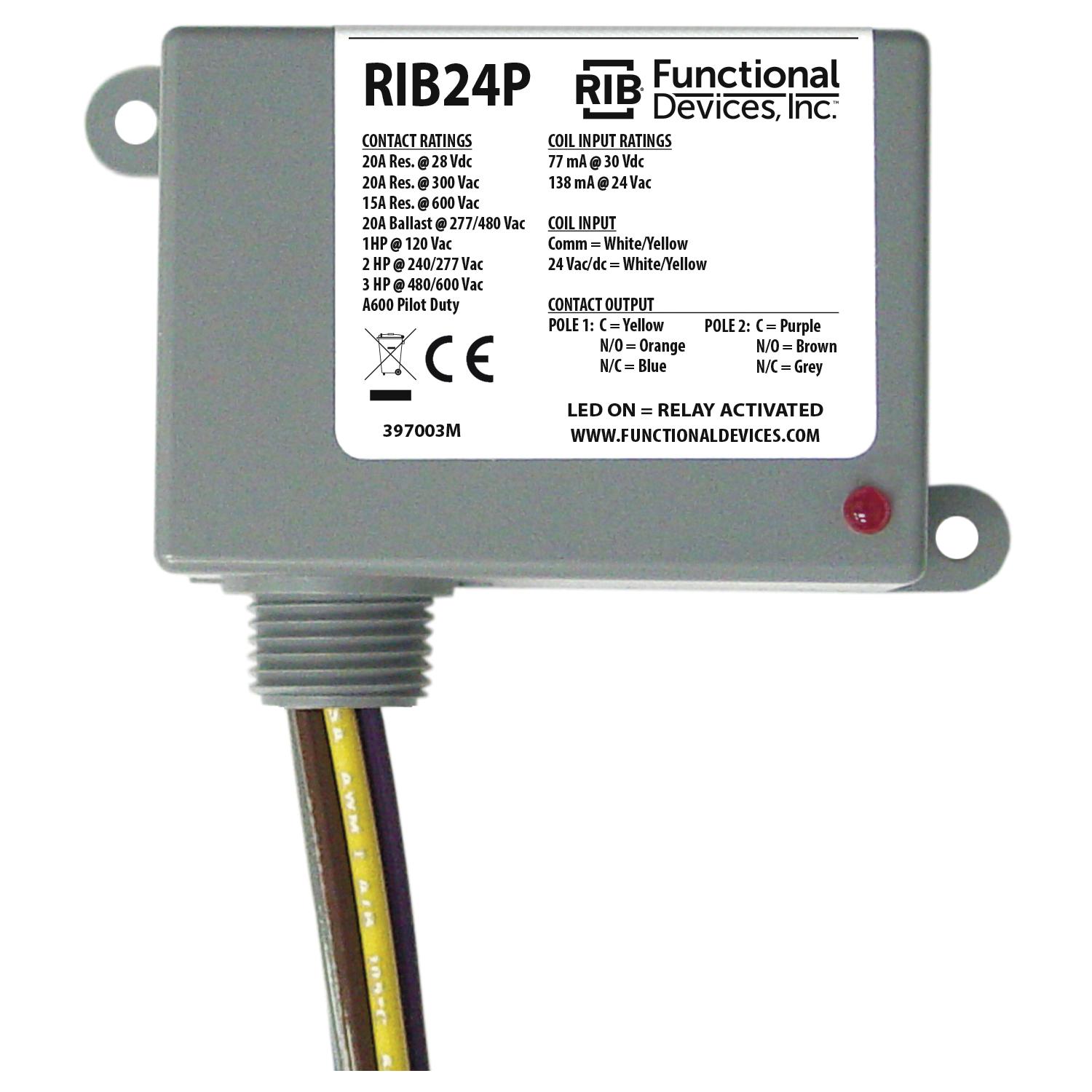

Functional Devices™ RIB Enclosed Relay, 138 mA, 50/60 Hz, 24 VDC Coil, 20 VAC/VDC Pickup Voltage, 3 VAC/3.8 VDC Drop Down Voltage, DPDT, Wire Terminal, 18 ms Operating, NEMA 1, -30 to 140 deg F, 3.2 in Height, 1.8 in Width
- With gold flash
- Without override switch
- Continuous-duty coil
- When LED is on relay activated
- 5 - 95% relative humidity non-Condensing
