| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | C |
| Connection Type 2 | : | C |
| Connection Type | : | C|C |
| Fitting Type | : | 90 deg Elbow |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Series | : | 207 Series |
| Temperature Rating | : | 250 deg F |
The need to provide energy efficient, safety conscious and cost effective installation has driven to the development of push-connect fitting technology. TECTITE push-connect fittings address these criteria by joining plumbing tube in the most efficient, safe and cost effective manner available today. TECTITE fittings are designed to join Copper, CPVC tube and PEX (requires a tube liner) and PE-RT (requires a tube liner) tubing in the 1/2 to 1 in size range.

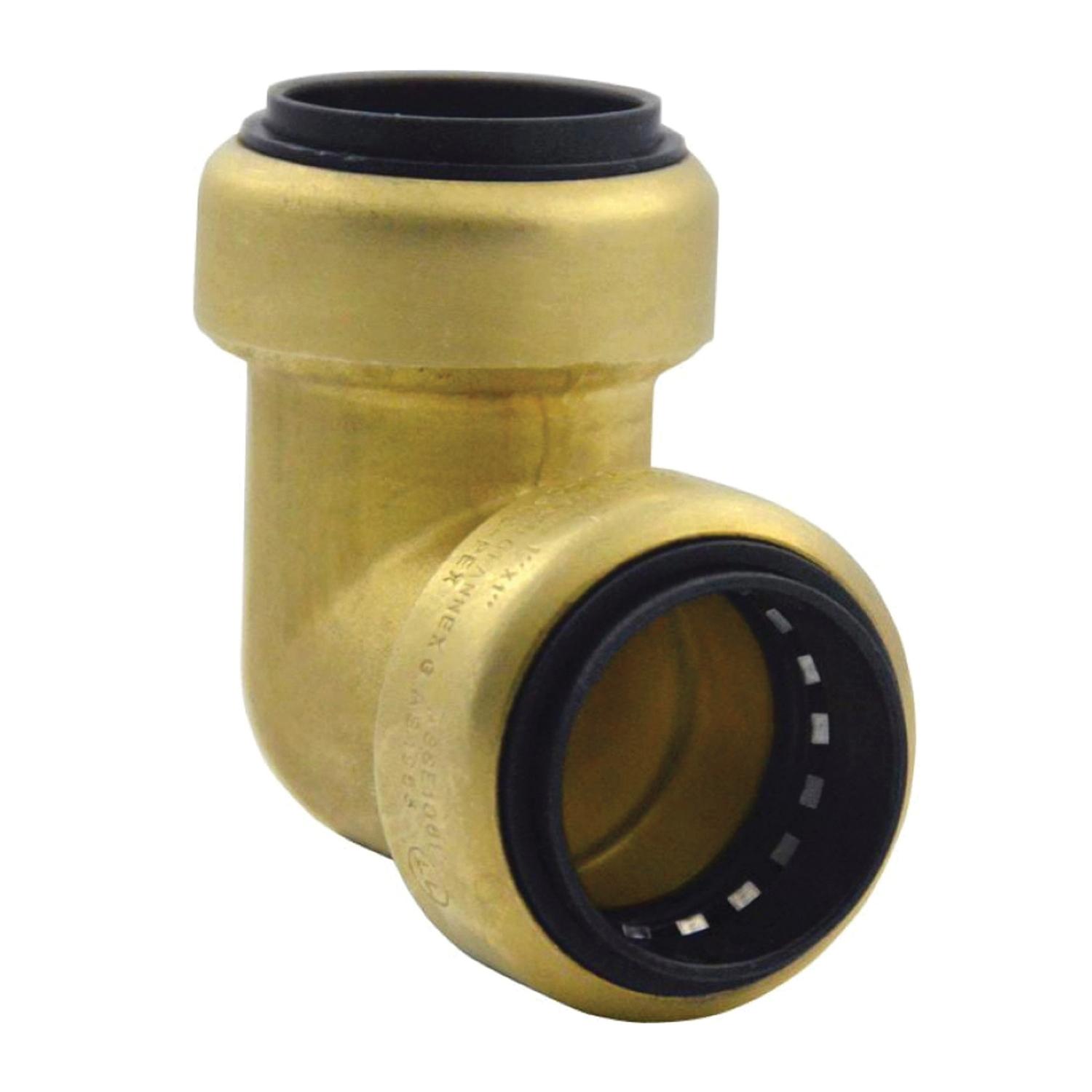

EPC 90 deg Elbow, 207 Series, 90 deg Elbow Fitting, 3/4 in Connection Size 1, Connection Type 1: C, 3/4 in Connection Size 2, Connection Type 2: C, C|C Connection, Brass, Material Construction: Brass, 200 psi, 250 deg F
- No special tools required
- Reduced installation time
- No wire brush, no flux, no solder, no flame
- No mess, only a clean, neat, appearance after installation
