| Capacity | : | 840 lb |
| Color | : | Gray |
| Domestic/Import | : | Domestic |
| Height | : | 3 in |
| Length | : | 24 in |
| Material | : | Polypropylene |
| Temperature Rating | : | -48 to 180 deg F |
| Thickness | : | 3 in |
| Width | : | 24 in |

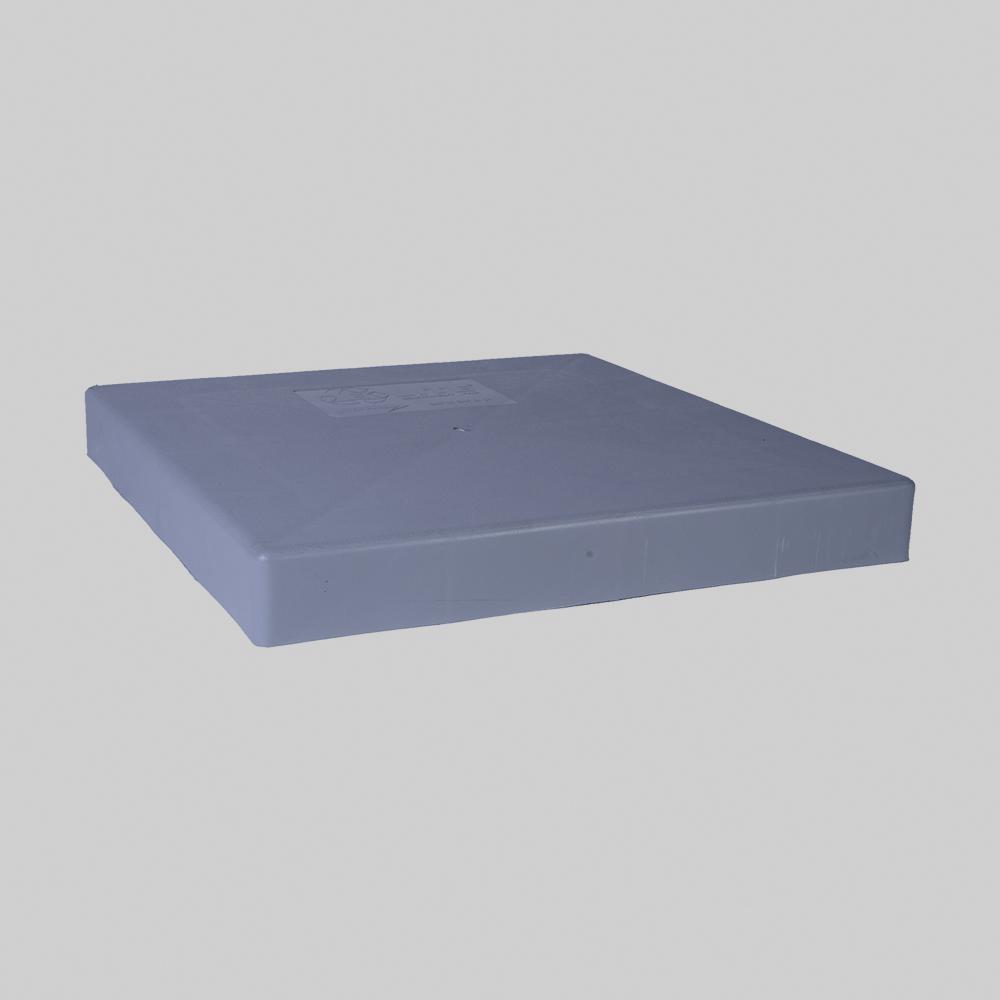

The E-Lite® EL2424-3 is a 24 x 24 x 3 in gray plastic pad designed as a mounting base for condenser equipment. E-Lite® is injection molded from polypropylene, creating a pad that is lightweight, but durable. It is constructed with generous ribbing for optimum strength and self-leveling ground support. It is made with 98% recycled, UV-inhibited material resulting in an environmentally friendly, weather-resistant equipment pad.
DiversiTech® E-Lite® Equipment Pad, 840 lb Capacity, -48 to 180 deg F, Polypropylene, Gray, 24 in Length, 24 in Width, 3 in Height, 3 in Thickness, Domestic/Import: Domestic
- Engineered with uniform and generous ribbing for level loading, optimum strength and self-leveling ground support
- Unaffected by UV exposure or extreme weather
- Environmentally friendly, made from 98% recycled plastic
- A subtle texture on pad surface prevents unit slide
- Each pad is constructed with its size in raised letters on the side of the pad for easy identification
- Tested per ASTM D2299 with refrigerants, synthetic canine urine, compressor oil or salt solution
- Drillable making it easy-to secure equipment to the pad if necessary
