| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | Press |
| Flow Coefficient (Cv) | : | 1416.2 Cv |
| Handle Material | : | Aluminum |
| Inlet to Outlet Length | : | 9-1/2 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material Standard | : | ASTM C37700, ASTM D2000-M2 |
| Media | : | Water |
| Nominal Size | : | 4 in |
| Operator Type | : | Handle |
| Pressure Rating | : | 250 psi |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Softgoods Material | : | EPDM |
| Temperature Rating | : | -4 to 248 deg F |
| Top to Inlet Center | : | 5-11/16 in |

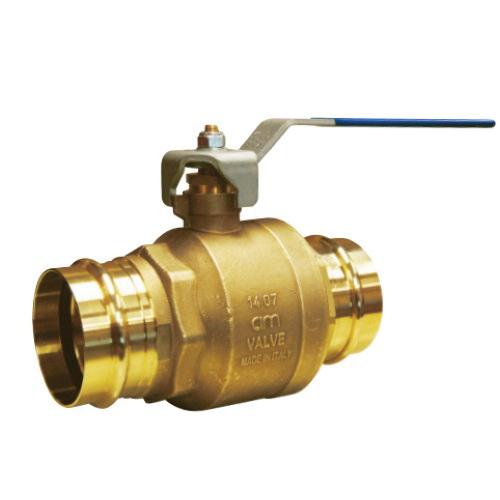

The CIM 1220NLN CIMPRESS ball valve is designed for direct connection to hard drawn copper tube (not intended for use with soft or rolled copper tubing) using appropriate tools, jaws and adapters as specified by the manufacturer. The CIM 1220NLN is suitable for use with non-aggressive fluid applications including residential, industrial and agricultural and is manufactured in accordance with MSS-SP-110, PS117-2004 and EN ISO 9001 standards.
Cimberio® Ball Valve, 4 in Nominal, Press Connection, 250 psi, Water Media, 9-1/2 in Inlet to Outlet Length, 5-11/16 in Top to Inlet Center, Handle Operator, 1416.2 Cv Flow Coefficient (Cv), Material Standard: ASTM C37700, ASTM D2000-M2, Brass Body, PTFE Seat, PTFE Seal, Aluminum Handle, Brass Ball, EPDM Softgoods, Lead-Free, -4 to 248 deg F
- Installs quickly and easily
- Flame-free installation
- Dezincification corrosion-resistant brass
- Suitable for various applications
