| Body Material | : | Brass |
| Connection Type | : | Press |
| Flow Coefficient (Cv) | : | 229.1 Cv |
| Inlet to Outlet Length | : | 5-1/8 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 1-1/2 in |
| Operator Type | : | Lever Handle |
| Port Type | : | Full |
| Pressure Rating | : | 250 psi |
| Temperature Rating | : | 250 deg F |
| Top to Inlet Center | : | 2-7/8 in |

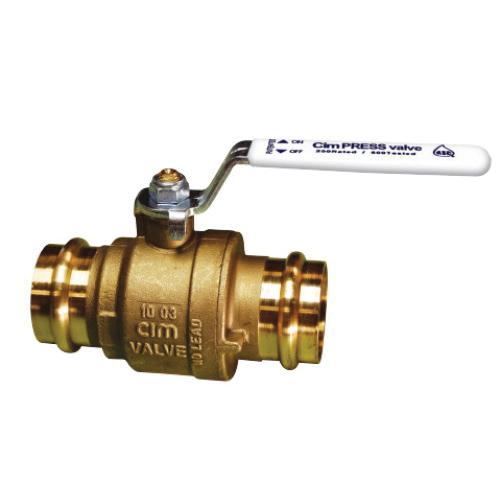

The CIM 1220 lead-free, ASC, ball valve is designed to install quickly and easily using standard press tools without the need for flux and solder. Suitable for all plumbing and heating applications, including 50% glycol/water mixtures, it's patented sure connect O-ring design ensures every connection has been pressed and sealed eliminating costly installation errors. The CIM 1220NL conforms to MSS-SP-110 and has a pressure rating of 250 psi with a temperature rating of 250 deg F.
Cimberio® Ball Valve, 1-1/2 in Nominal, Press Connection, Full Port, 250 psi, Water Media, 5-1/8 in Inlet to Outlet Length, 2-7/8 in Top to Inlet Center, Lever Handle Operator, 229.1 Cv Flow Coefficient (Cv), Brass Body, Lead-Free, 250 deg F
- Installs quickly and easily
- Compact design
- Patented sure connect O-ring design
- Suitable for 50% glycol/water mixtures
