| Connection Type | : | Press |
| Domestic/Import | : | Import |
| Flow Coefficient (Cv) | : | 40 Cv |
| Flow Rate | : | 10 gpm |
| Material | : | Brass |
| Maximum Percentage of Glycol | : | 50 % |
| Nominal Size | : | 1-1/4 in |
| Particle Separation Capacity | : | 0.5 mil |
| Pressure Rating | : | 150 psi |
| Series | : | 5461 Series |
| Suitable Media | : | Glycol Solution, Water |
| Temperature Rating | : | 32 to 250 deg F |

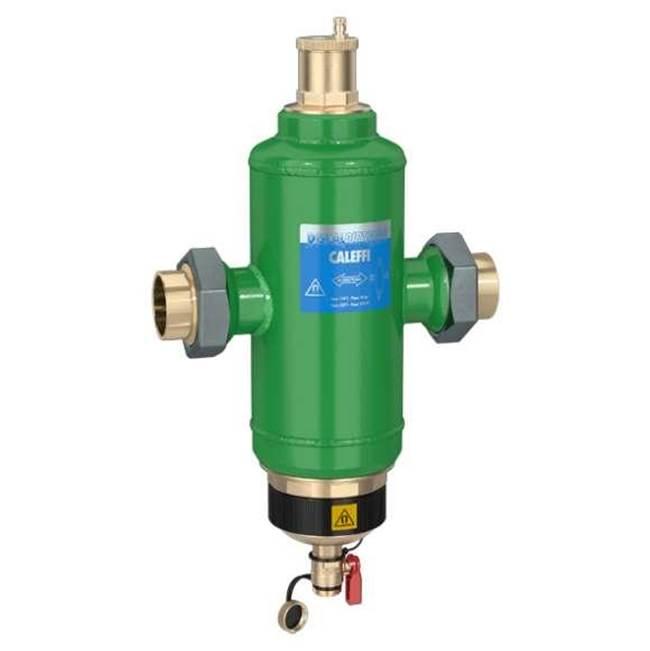

Air and dirt separator with magnet stainless steel float guide pin and linkage. Glass reinforced nylon internal element. Ferrous impurities separation efficiency 100%. Connection 1-1/4 in, press. Maximum working pressure 150 psi. Medium temperature range 32 to 250 deg F.
Caleffi Air and Dirt Separator With Magnet, 5461 Series, 1-1/4 in Nominal, Press Connection, 150 psi, 32 to 250 deg F, Glycol Solution, Water Suitable Media, 50 % Maximum Percentage of Glycol, 10 gpm Flow Rate, 40 Cv Flow Coefficient (Cv), 0.5 mil Particle Separation Capacity, Brass, Domestic/Import: Import
