| Color | : | Clear |
| Connection Type | : | Push-In |
| Height | : | 2-1/2 in |
| Length | : | 2.22 in |
| Material | : | Aluminum |
| Temperature Rating | : | 90 deg C |
| Torque Rating | : | 275 in-lb |
| Voltage Rating | : | 600 V |
| Width | : | 2.32 in |
| Wire Size | : | 10 AWG to 350 kcmil, 8 AWG to 250 kcmil |

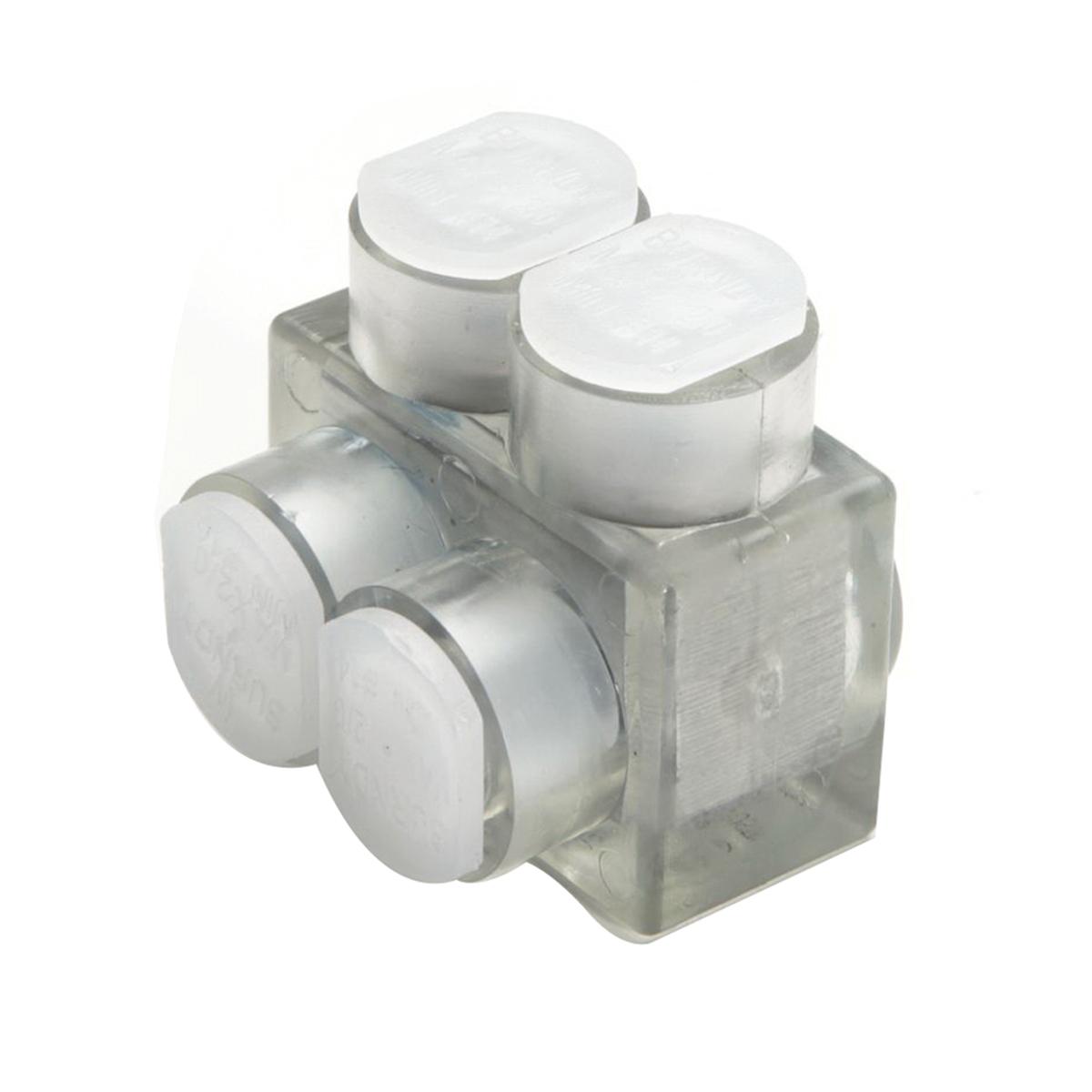

BURNDY® Unitap Multiple Tap Connector, 10 AWG to 350 kcmil, 8 AWG to 250 kcmil Wire, 600 V, Push-In Connection Type, 275 in-lb Torque, Aluminum, Clear, 90 deg C, 2.22 in Length, 2.32 in Width, 2-1/2 in Height
- Tap connections and in-line splice/reductions are made quickly and easily with the UNITAP line of connectors
- Clear plastisol covered AL6061-T6 aluminum body
- Oxide inhibitor pre-installed
- One-side entry
