| Amperage Rating | : | 0.3 A |
| CFM Rating | : | 50 to 110 cfm |
| Coverage Area | : | 105 sq-ft |
| Duct Size | : | 4 in |
| Frequency Rating | : | 60 Hz |

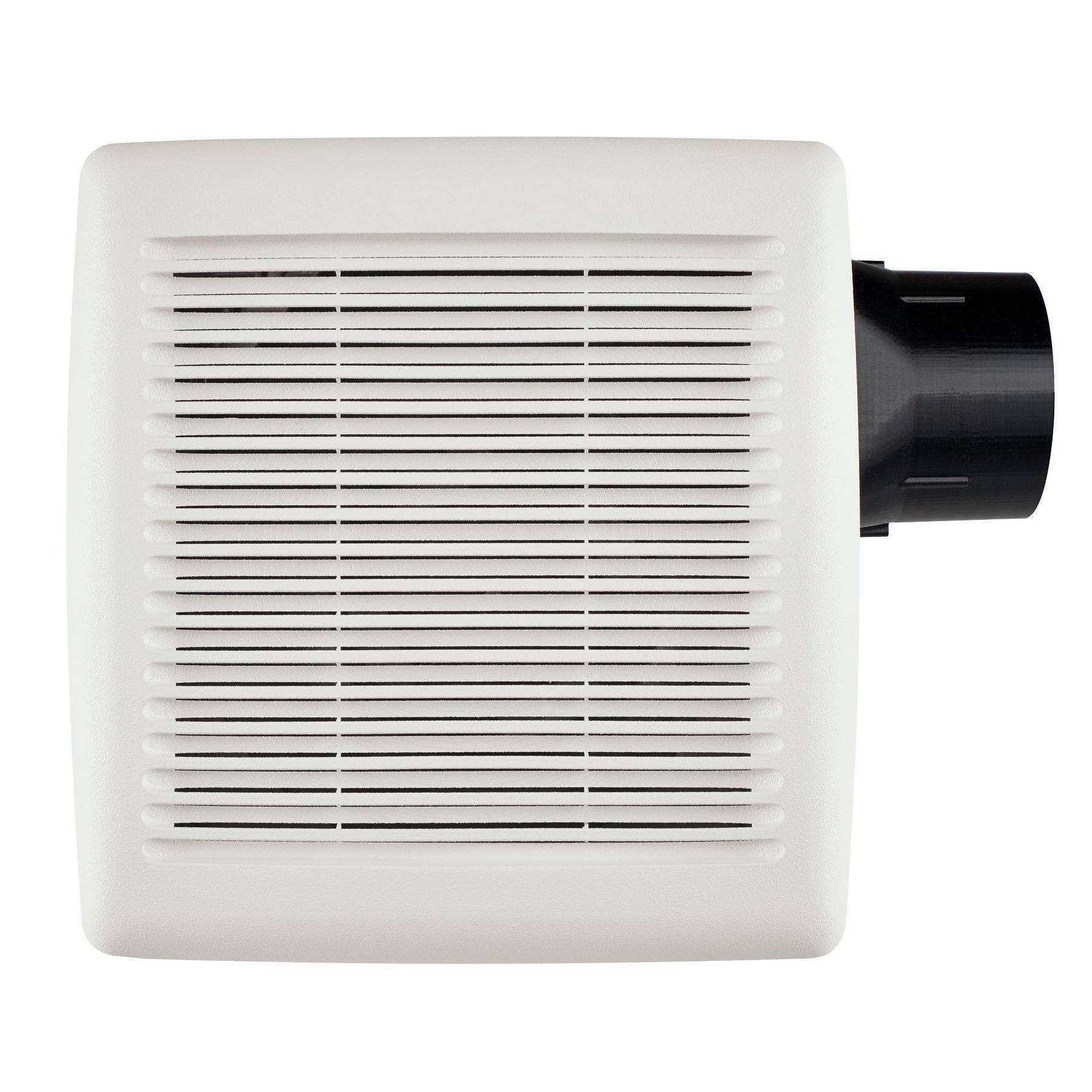

| Grille Size | : | 11-1/2 x 12 in |
| Housing Color | : | White |
| Housing Finish | : | Galvanized |
| Housing Material | : | Steel |
| Motor Type | : | Brushless DC |
| Mounting Type | : | Ceiling, Wall |
| Noise Rating | : | 0.3 to 1.4 sones |
| Overall Height | : | 5-3/4 in |
| Overall Length | : | 9-1/4 in |
| Overall Width | : | 10 in |
| Power Rating | : | 3.4 to 14.9 W |
| Series | : | Flex DC |
| Voltage Rating | : | 120 VAC |

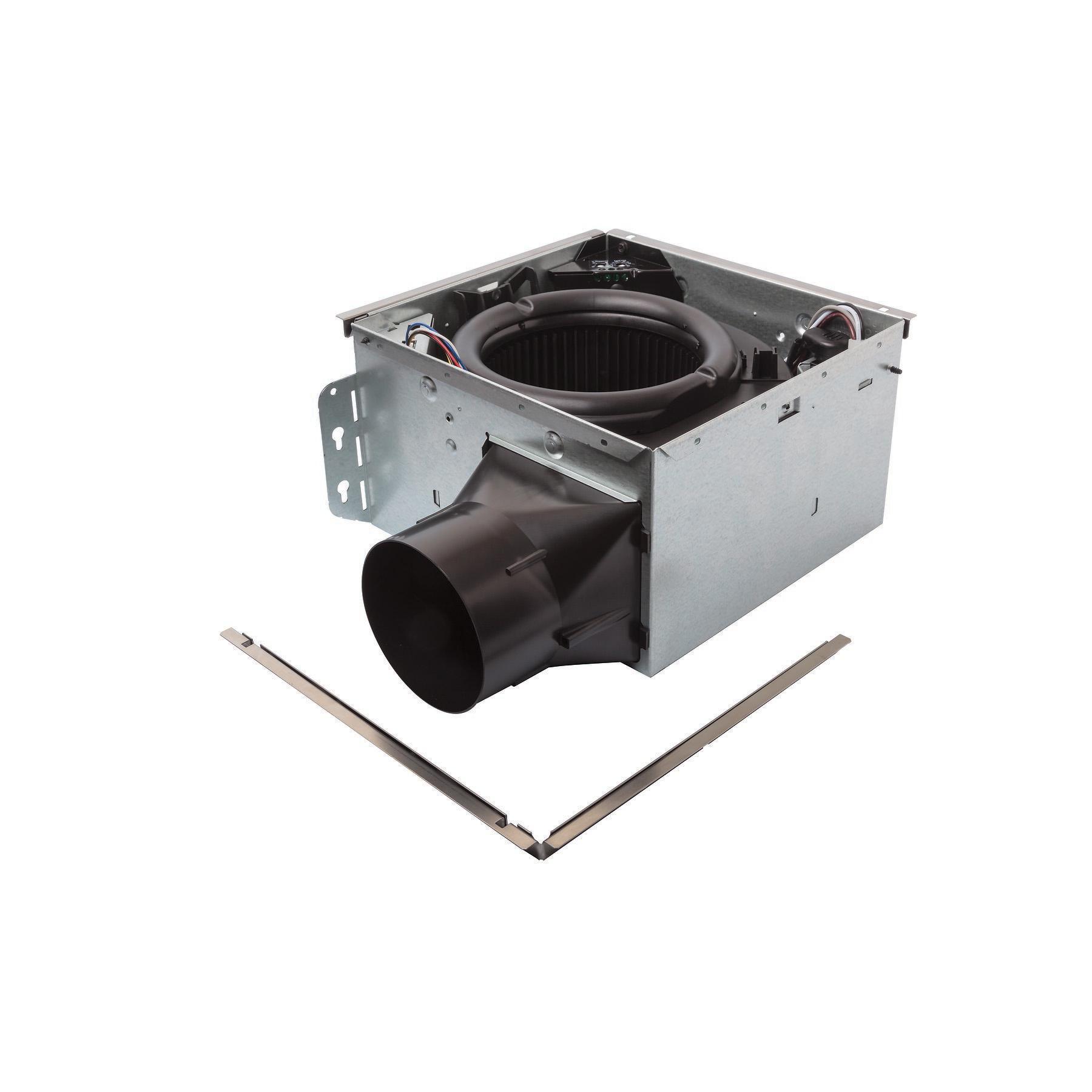

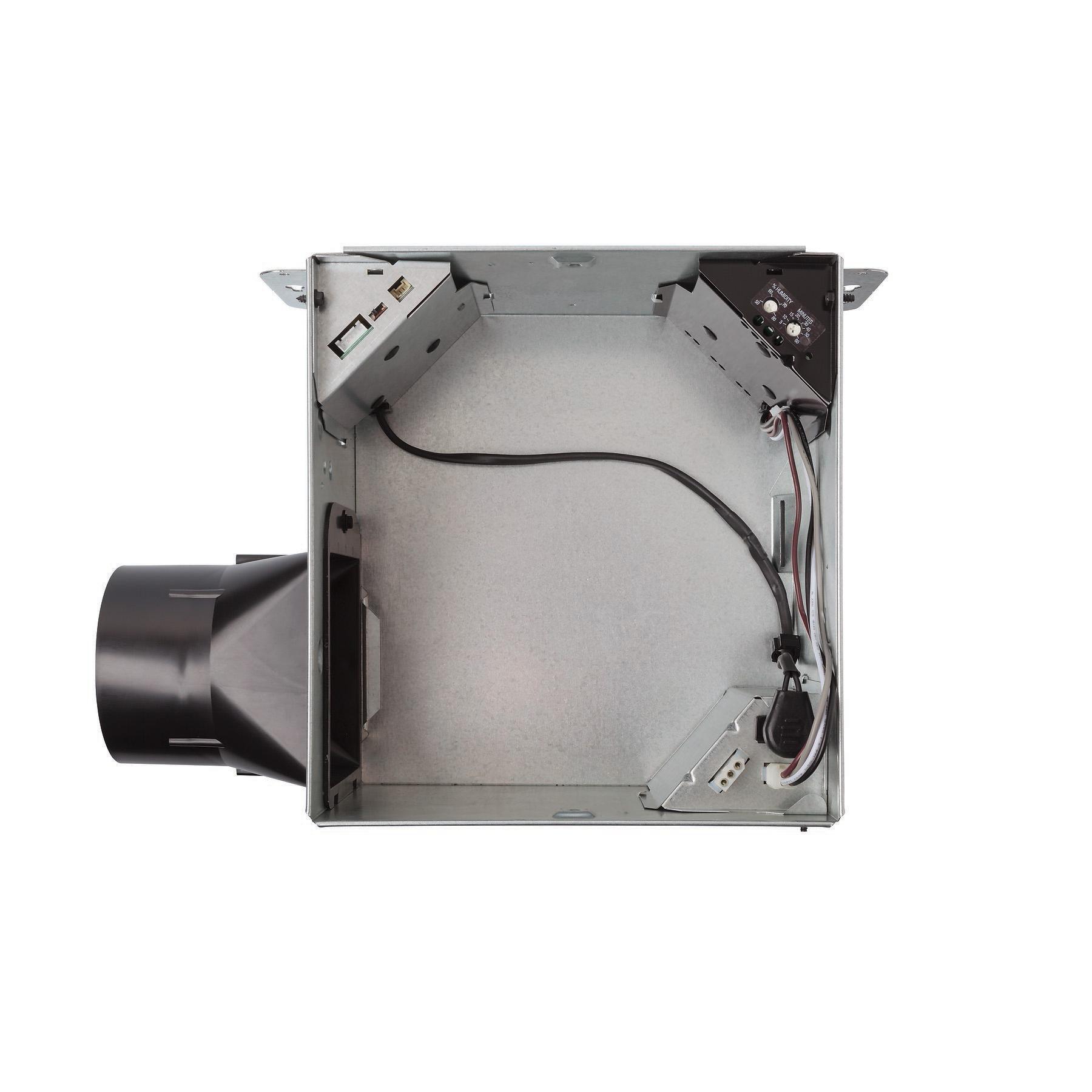

Broan® AE50110DC Flex DC series exhaust bath fan, ENERGY STAR offers easy, room side installation, with "no attic access required". Ceiling-mounted ventilation fan features foldable mounting ears and EZ duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable cfm range of 50 to 110 at a quiet operation of <0.3 to 0.9 sones.
Broan-NuTone® Bathroom Exhaust Fan, Series: Flex DC, 120 VAC, 0.3 A, 60 Hz, Power Rating: 3.4 to 14.9 W, Ceiling, Wall Mounting, 11-1/2 x 12 in Grille, 4 in Duct, Motor Type: Brushless DC, 50 to 110 cfm, 105 sq-ft Coverage Area, 0.3 to 1.4 sones Noise, 9-1/4 in L Overall, 10 in W Overall, 5-3/4 in H Overall, Steel Housing, Housing Finish: Galvanized, White Housing
- Bathroom Exhaust Fan
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room side, no attic access required, this means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug-in, permanently lubricated, brushless DC motor engineered for continuous operation
- Can be installed in a wall if mounted 8 ft or more above the floor
- Dynamically balanced centrifugal blower wheel for quiet, efficient performance
- Low RPM for quiet operation
- FlexFlow technology, select between 50 cfm, 80 cfm or 110 cfm
