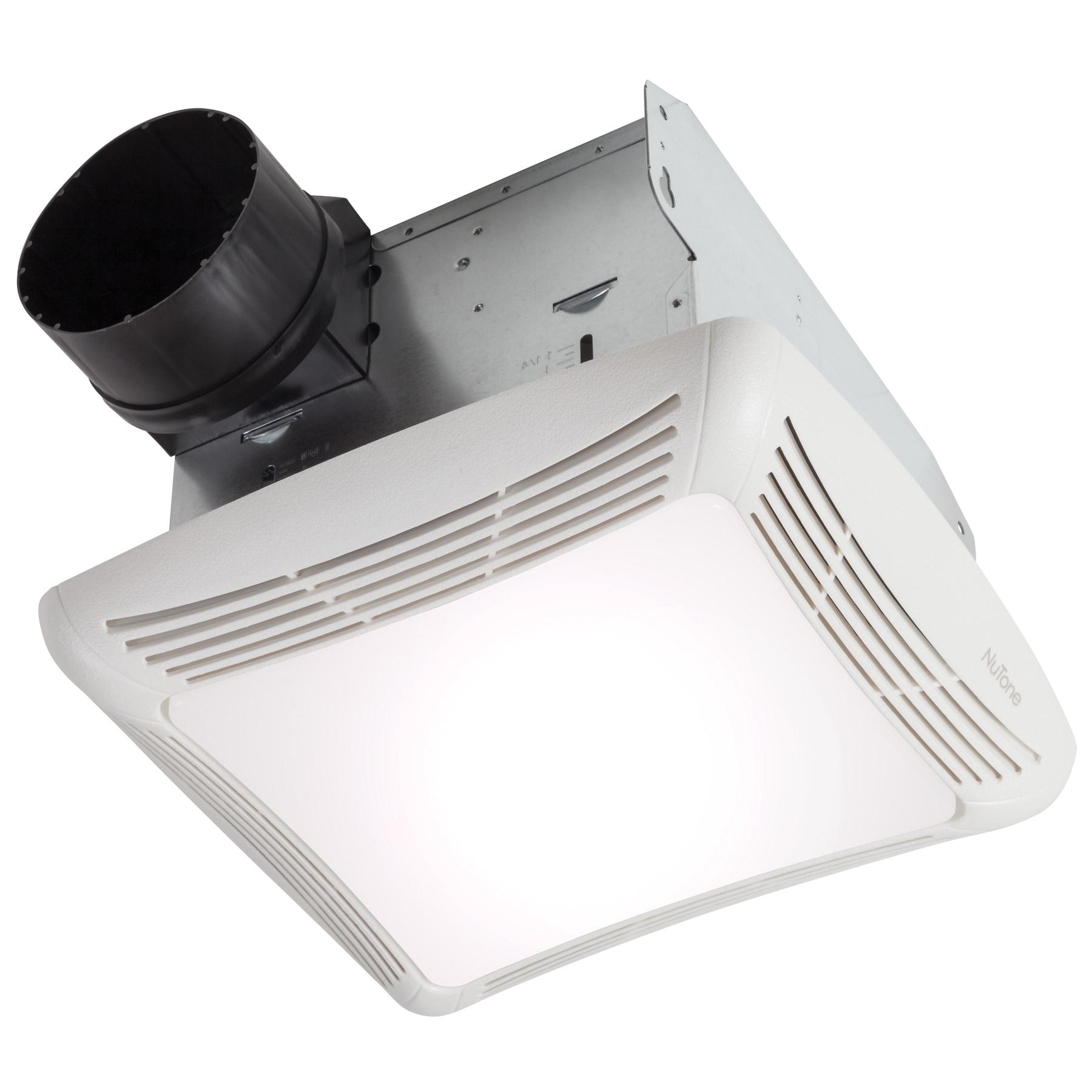

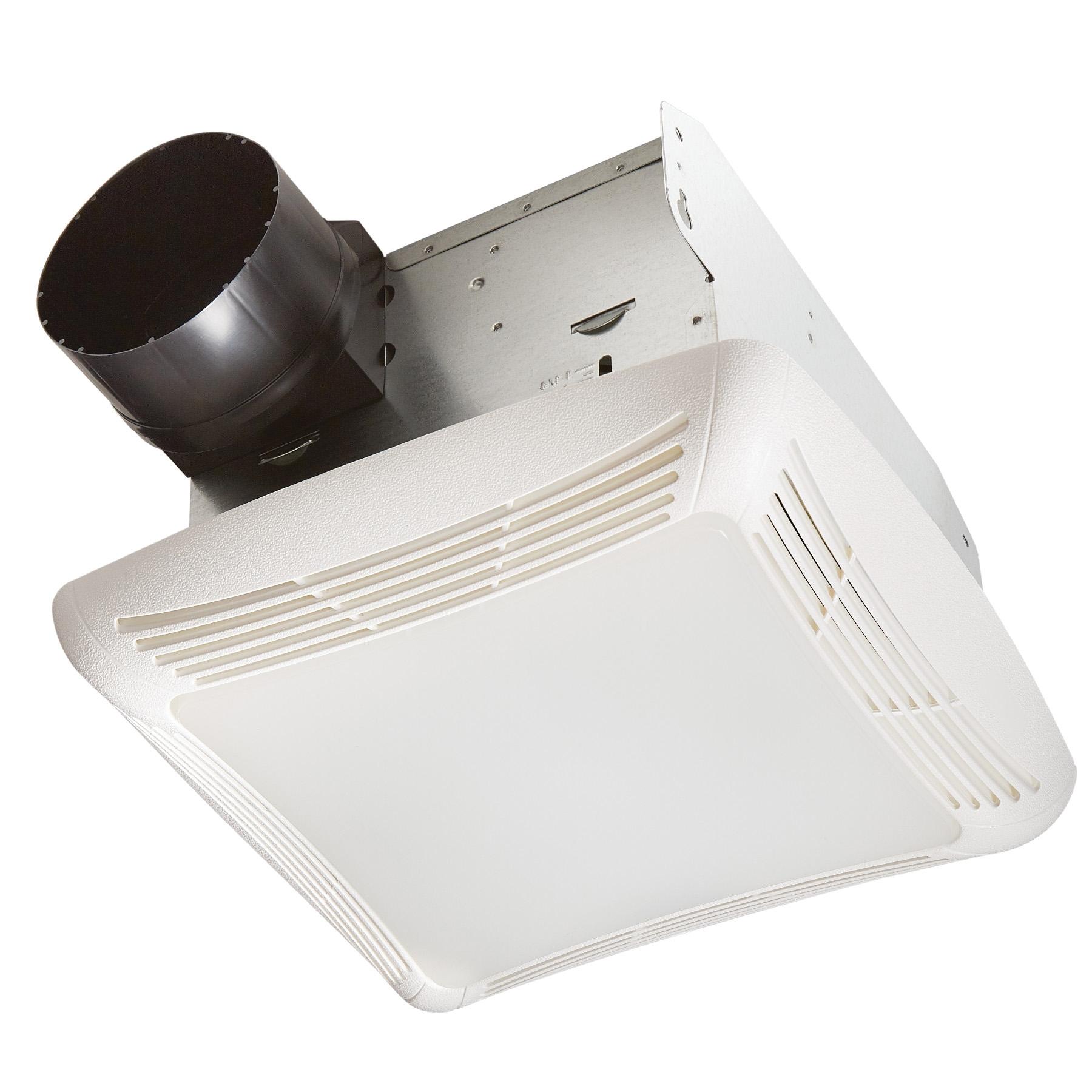

Broan-NuTone® BRO763RLN

Broan-NuTone® 763 Ventilation Fan, 120 V, 1.6 A, Steel Housing, Galvanized Housing

Manufacturer: Madison Air
Part #: BRO763RLN
Customer Part #:
Login for Availability
Login for Price
Amperage Rating      :      1.6 A
CFM Rating      :      50 cfm
Coverage Area      :      45 sq-ft
Duct Size      :      4 in
Grille Size      :      12 in L x 10-3/4 in W
Housing Color      :      White
Housing Finish      :      Galvanized
Housing Material      :      Steel
Lamp Type      :      LED
Lamp Wattage      :      100 W
Mounting Type      :      Recessed
Noise Rating      :      2.5 sones
Overall Height      :      5-3/4 in
Overall Length      :      8-1/4 in
Overall Width      :      8 in
Power Rating      :      100 W
Voltage Rating      :      120 V

Broan-NuTone® Ventilation Fan, 120 V, 1.6 A, 100 W, Recessed Mounting, 12 in L x 10-3/4 in W Grille, 4 in Duct, LED Lamp, 100 W Lamp Wattage, 50 cfm, 45 sq-ft Coverage Area, 2.5 sones Noise Rating, 8-1/4 in Overall Length, 8 in Overall Width, 5-3/4 in Overall Height, Steel Housing, Galvanized Housing, White Housing

  • 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
  • 2.5 Sones for Quiet performance, enough sound to know your fan is on
  • Up to 100-watt incandescent A19 bulb (not included) provides ample lighting so you can complete your tasks
  • Compact housing for versatile installation
  • Fan and light may be wired independantly or together, providing you the choice of fan, light, or both
  • UL Listed for use over tub or shower with a GFCI circuit
  • Type IC listed for use with thermal insulation
  • Powerful enough for rooms up to 45 sq. ft
  • Translucent white polymeric lens is surrounded by an engineered white resin grille which blends nicely with your ceiling and any decor
  • Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Broan_NuTone_744RNL_Catalog.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Broan_NuTone_763_Specification_Sheet.pdf
