| Amperage Rating | : | 0.9 A |
| CFM Rating | : | 50 cfm at 0.1 in |
| Color | : | White |
| Duct Size | : | 3 in |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Grille Size | : | 8-3/4 in L x 9-1/8 in W |
| Height | : | 3-5/8 in |
| Length | : | 7-1/2 in |
| Material | : | Steel, Polymer |
| Mounting Type | : | Horizontal |
| Voltage Rating | : | 120 VAC |
| Width | : | 7-1/4 in |
A standard fan that provides a basic level of ventilation for small to average sized bathrooms or powder rooms, it solves one more problem on your to-do list. Double-strength steel mounting flanges with keyhole slots for fast installation is a plus!.
Broan-NuTone® Bath Ventilation Fan, 120 VAC, 0.9 A, 60 Hz, Steel, Polymer, Galvanized, White, Horizontal Mount, 7-1/2 in Length, 7-1/4 in Width, 3-5/8 in Height, 8-3/4 in L x 9-1/8 in W Grille, 50 cfm at 0.1 in, 3 in Duct
- Bath Ventilation Fan
- For baths upto 45 sq-ft, other rooms upto 60 sq-ft
- Installs in ceiling or 2 x 4 in wall studs
- Mounts on either 16 or 24 in OC joist or stud
- Discharge is through 3 in round duct through roof or wall
- Sturdy-mounting brackets of double metal thickness slotted on housing for vertical-mounting adjustments
- Extra large outlet box area
- Efficient impeller blower wheel

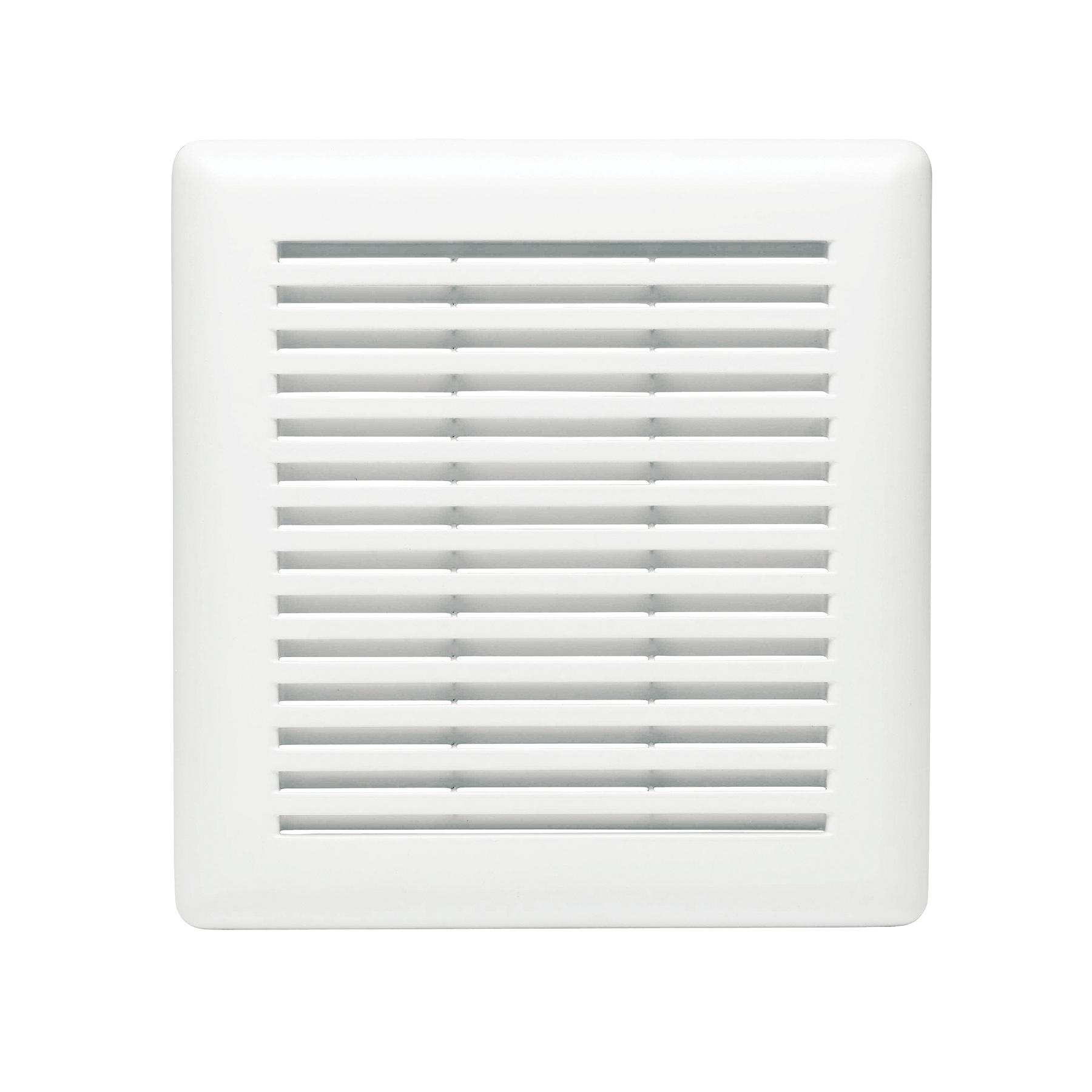

- Attractive white polymeric grille with torsion springs to adjust for thickness variances in ceiling or wall
- Polypropylene weather damper
