| Additional Information | : | 0.032 in THK Tube Wall |
| Connection Size 1 | : | 3/8 in |
| Connection Type 1 | : | OD Tube |
| Connection Type | : | Tube |
| Dimensions | : | 0.42 in L |
| Finish | : | Chrome-Plated |
| Fitting Type | : | Nut |
| For Use With | : | Aluminum and Copper Tubes |
| Hex Size | : | 5/8 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Series | : | 61 Series |
| Temperature Rating | : | -65 to 250 deg F |
| Thread Size | : | 9/16-24 |

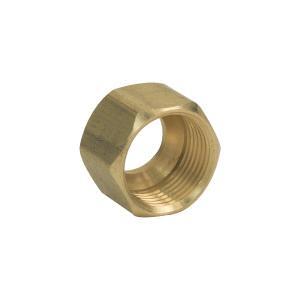

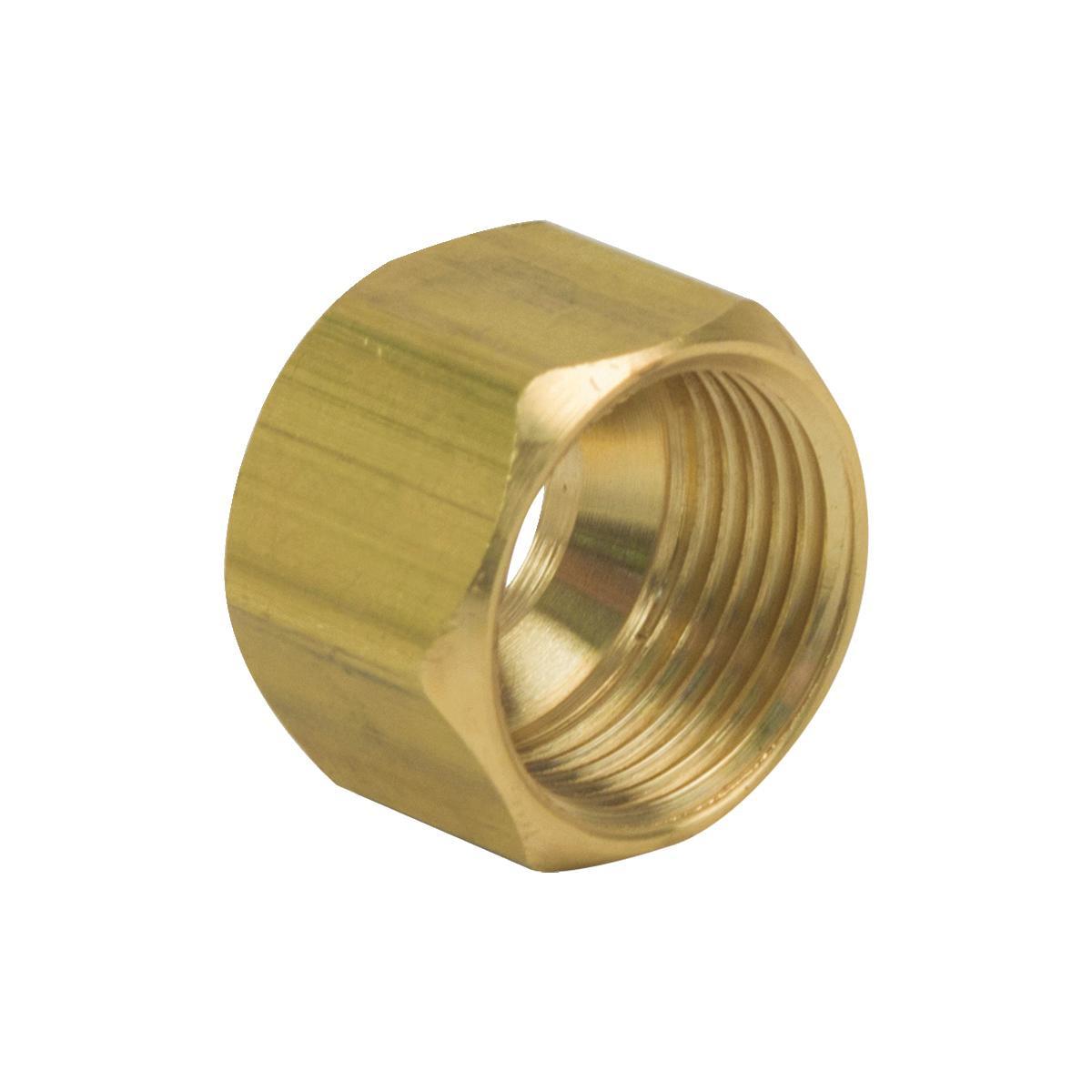

BrassCraft® compression nut is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.
BrassCraft® Compression Nut, 61 Series, Nut Fitting, Connection Size 1: 3/8 in, Connection Type 1: OD Tube, Tube Connection, Brass, Material Construction: Brass, Finish: Chrome-Plated, 9/16-24 Thread, 5/8 in Hex, For Use With: Aluminum and Copper Tubes, 0.42 in L, 200 psi, -65 to 250 deg F, Additional Information: 0.032 in THK Tube Wall
- Brass construction provides strength, durability and longer-lasting performance
- Not recommended for steel tubing
- Not for use in potable water applications
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
- Check installation instructions for exact requirements
