| Additional Information | : | 0.893 in Dia Dimensions |
| Connection Size | : | 7/8 in |
| Connection Type | : | Compression |
| Finish | : | Rough |
| Fitting Type | : | Sleeve |
| For Use With | : | Aluminum, Copper and Plastic Tubes |
| Length | : | 0.34 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 75 psi |
| Series | : | 60 Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 7/8 in |

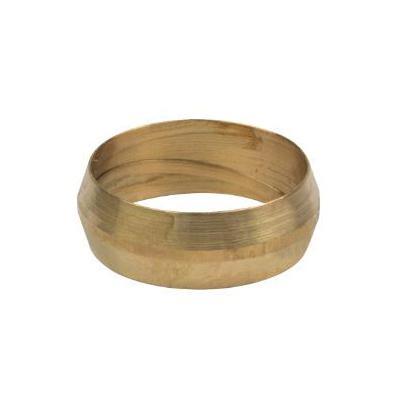

BrassCraft® compression sleeve is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.
BrassCraft® Sleeve, 60 Series, Sleeve Fitting, 7/8 in Connection, Compression Connection, Brass, Material Construction: Brass, Finish: Rough, 0.34 in Length, 7/8 in Tube OD, For Use With: Aluminum, Copper and Plastic Tubes, 75 psi, -65 to 250 deg F, Additional Information: 0.893 in Dia Dimensions
- Not recommended for steel tubing
- Not for use in potable water applications
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
- May be used in both indoors and outdoors
