| Connection Size 1 | : | 5/8 in |
| Connection Size 2 | : | 5/8 in |
| Connection Size 3 | : | 5/8 in |
| Connection Size 4 | : | 5/8 in |
| Connection Type 1 | : | Flared |
| Connection Type 2 | : | Flared |
| Connection Type 3 | : | Flared |
| Connection Type 4 | : | Flared |
| Connection Type | : | Flared|Flared|Flared|Flared |
| Dimensions | : | 2.1 in L |
| Finish | : | Rough |
| Fitting Type | : | Union |
| Hex Size | : | 7/8 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 600 to 3000 psi |
| Series | : | 42 Series |
| Temperature Rating | : | -65 to 250 deg F |
| Thread Size | : | 7/8-14 |
| Tube OD | : | 5/8 in |

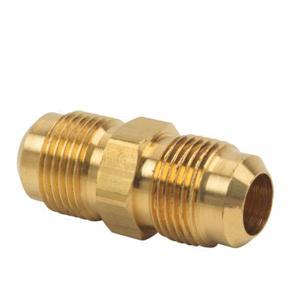

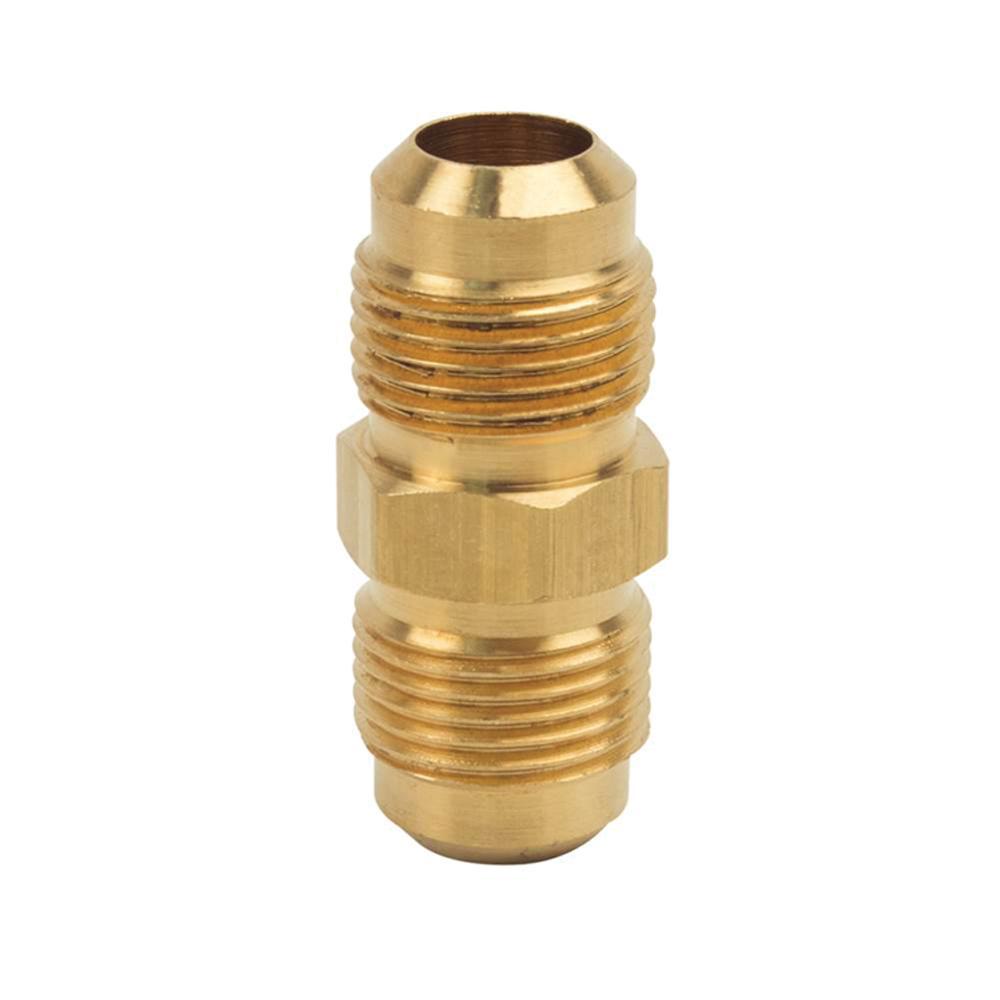

BrassCraft® Union, 42 Series, Union Fitting, 5/8 in Connection Size 1, Connection Type 1: Flared, 5/8 in Connection Size 2, Connection Type 2: Flared, Connection Size 3: 5/8 in, Connection Type 3: Flared, Connection Size 4: 5/8 in, Connection Type 4: Flared, Flared|Flared|Flared|Flared Connection, Brass, Material Construction: Brass, Finish: Rough, 5/8 in Tube OD, 7/8-14 Thread, 7/8 in Hex, 2.1 in L, 600 to 3000 psi, -65 to 250 deg F
- Designed for use with aluminum, copper, brass and welded steel tubing that can be flared
- Designed for use with fuel, oil, liquefied petroleum and natural gas lines
