| Additional Information | : | 7/16-20 Thread Size |
| Connection Size | : | 1/4 in |
| Connection Type | : | Tube |
| Finish | : | Rough |
| Fitting Type | : | Nut |
| For Use With | : | Aluminum, Brass, Copper and Welded Steel Tubes |
| Hex Size | : | 9/16 in |
| Length | : | 3/4 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 600 to 3000 psi |
| Series | : | 41S Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 1/4 in |

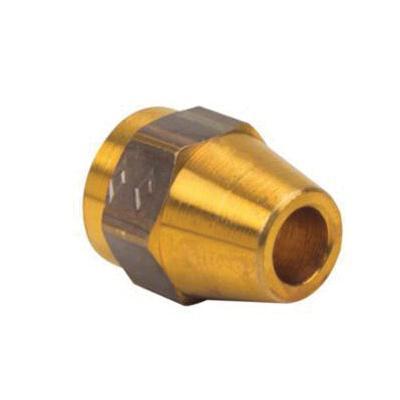

The 1/4 in flare nut short is highly dependable and an economical choice of fitting for fluid and air transmission within multiple application including heating and other industrial markets. This all brass fitting features a vibration-resistant construction. It resists mechanical pullout and is designed for high pressure service. The temperature range is -65 to 250 deg F.
BrassCraft® 45 deg Short Flare Nut, 41S Series, Nut Fitting, 1/4 in Connection, Tube Connection, Brass, Material Construction: Brass, Finish: Rough, 3/4 in Length, 9/16 in Hex, 1/4 in Tube OD, For Use With: Aluminum, Brass, Copper and Welded Steel Tubes, 600 to 3000 psi, -65 to 250 deg F, Additional Information: 7/16-20 Thread Size
- Designed for use with aluminum, copper, brass and welded steel tubing that can be flared
- Designed for use with fuel, oil, liquefied petroleum (LP) and natural gas lines
- Recommended for higher pressures than those covered by compression fittings
- Resists mechanical pull-out
- Not for use in potable water applications
- May be used in both indoors and outdoors
