| Additional Information | : | 1-1/4-12 Thread |
| Connection Size | : | 7/8 in |
| Connection Type | : | Tube |
| Finish | : | Rough |
| Fitting Type | : | Nut |
| For Use With | : | Aluminum, Copper, Brass and Welded Steel Tubing |
| Hex Size | : | 1-1/2 in |
| Length | : | 1.62 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 600 to 3000 psi |
| Series | : | 41S Series |
| Temperature Rating | : | -65 to 250 deg F |
| Tube OD | : | 7/8 in |

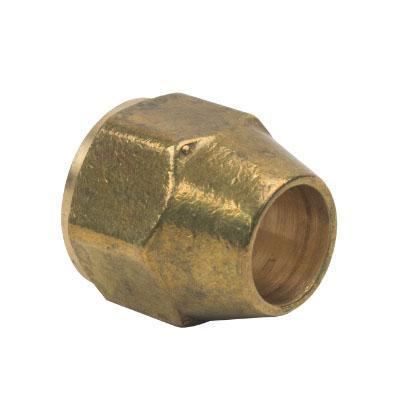

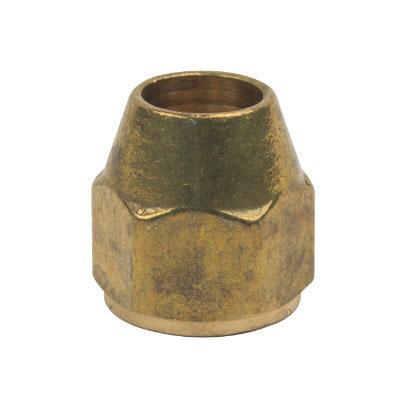

The 7/8? Flare Nut short is highly dependable and an economical choice of fitting for fluid and air transmission within multiple application including heating and other industrial markets. This all-brass fitting features a vibration resistant construction. It resists mechanical pullout and is designed for high pressure service. The temperature range is minus 65 degrees F to 250 degrees.
BrassCraft® Short Flare Nut, 41S Series, Nut Fitting, 7/8 in Connection, Tube Connection, Brass, Material Construction: Brass, Finish: Rough, 1.62 in Length, 1-1/2 in Hex, 7/8 in Tube OD, For Use With: Aluminum, Copper, Brass and Welded Steel Tubing, 600 to 3000 psi, -65 to 250 deg F, Additional Information: 1-1/4-12 Thread
- Brass construction
- 7/8 in. O.D. Tube
- Designed for use with aluminum, copper, brass and welded steel tubing that can be flared
- Designed for use with fuel, oil, liquefied petroleum (LP) and natural gas lines
- Recommended for higher pressures than those covered by compression fittings
- Resists mechanical pullout
- Rough Brass
- May be used in both indoors and outdoors
- Temperature rating: -65deg to 250deg F at maximum operating pressures
- Pressure rating: 600 to 3,000 PSI
