| Amperage Rating | : | 3.1 A |
| BTU Rating | : | 65000 Btu/hr |
| Capacity | : | 48 gal |
| Connection Type | : | NPT |
| Dimensions | : | 26-3/4 in Dia x 66-1/8 in H |
| Efficiency | : | 80 % |
| Energy Factor | : | 0.7 |
| Energy Star Compliant | : | Yes |
| First Hour Delivery | : | 112 gph |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Spark to Pilot |
| Power Rating | : | 19.1 kW |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 70 gph |
| Voltage Rating | : | 120 V |

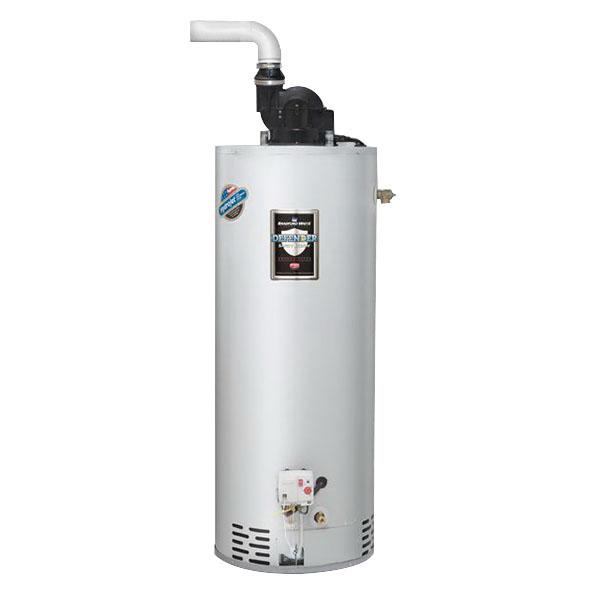

Bradford White® Gas Water Heater, 48 gal Capacity, 65000 Btu/hr, 19.1 kW, 112 gph First Hour Delivery, 0.7 Energy Factor, 70 gph Recovery Rate, 80 % Efficiency, 3.1 A, 120 V, 60 Hz, NPT Connection, 150 psi, Energy Star Compliant: Yes, Natural Gas Fuel, Spark to Pilot Ignition System, 26-3/4 in Dia x 66-1/8 in H
- Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- An exclusive green LED light prompts the installer during startup and provides 10 different diagnostic codes to assist in troubleshooting
- Power vented water heater - designed for installations where atmospheric units cannot be used
- Powerful blower motor has greater resistance to outside winds and the power to vent in many difficult venting situations
- Sight window offers a view into the combustion chamber to observe the operation of the pilot and burner
- Factory installed Hydrojet® total performance system
- An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- Non-CFC foam covers the sides and top of the tank, reducing heat loss
- Factory installed heat traps
- Protective magnesium rod
- Temperature and pressure relief valve included
- Durable tamper-proof design low restriction brass drain valve
- Advanced ScreenLok® technology flame arrestor design
- Electronic sensor prevents burner operation if flammable vapors are detected, the sensor will also prevent operation if there is ongoing flammable vapor burn inside the combustion chamber
- No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
