| Amperage Rating | : | 3.1 A |
| BTU Rating | : | 40000 Btu/hr |
| Capacity | : | 40 gal |
| Connection Type | : | NPT |
| Dimensions | : | 30-1/2 in Dia x 59-3/8 in H |
| Efficiency | : | 78 % |
| Energy Factor | : | 0.7 |
| Energy Star Compliant | : | Yes |
| First Hour Delivery | : | 72 gph |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Spark to Pilot |
| Power Rating | : | 11.7 kW |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 43 gph |
| Voltage Rating | : | 110 V |

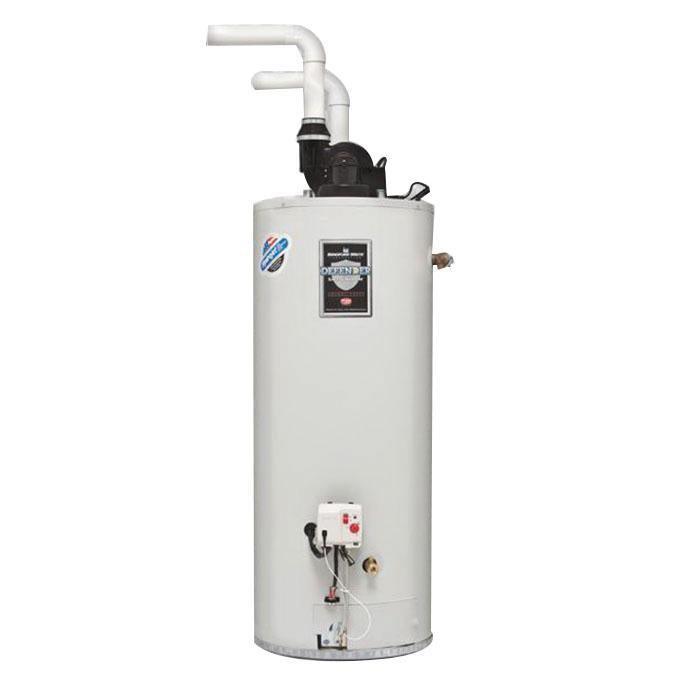

Bradford White® Gas Water Heater, 40 gal Capacity, 40000 Btu/hr, 11.7 kW, 72 gph First Hour Delivery, 0.7 Energy Factor, 43 gph Recovery Rate, 78 % Efficiency, 3.1 A, 110 V, 60 Hz, NPT Connection, 150 psi, Energy Star Compliant: Yes, Natural Gas Fuel, Spark to Pilot Ignition System, 30-1/2 in Dia x 59-3/8 in H
- Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
- An exclusive green LED light prompts the installer during startup and provides 10 different diagnostic codes to assist in troubleshooting
- High-strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
- Closed combustion venting system
- Cast aluminum air intake boot design provides exceptional durability during installation and operation
- Termination fitting provides for only one exit opening through a wall or roof
- Electronic sensor prevents burner operation if flammable vapors are detected
- Factory installed Hydrojet® total performance system
- An exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- 2 in non-CFC foam insulation covers the side and top, reducing the amount of heat loss
- Factory installed heat traps
- Protective magnesium anode rods
- Temperature and pressure relief valve included
- Durable tamper-proof design low restriction brass drain valve
