| BTU Rating | : | 76000 Btu/hr |
| Capacity | : | 75 gal |
| Connection Type | : | NPT |
| Dimensions | : | 26 in Dia x 62-5/8 in H x 29-1/4 in D |
| Domestic/Import | : | Domestic |
| Energy Factor | : | 0.59 |
| First Hour Delivery | : | 135 gal |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Piezo |
| Mounting Type | : | Floor |
| Power Rating | : | 22.3 kW |
| Pressure Rating | : | 150 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 82 gph |
| Temperature Rating | : | 160 deg F |
| Vent Size | : | 4 in |
| Vent Type | : | Atmospheric |
Intelligent gas control with proven millivolt powered technology and built-in piezo igniter. A standard, off-the-shelf thermopile converts heat energy from the pilot flame into electrical energy to operate the gas valve and microprocessor. No need for external electricity.

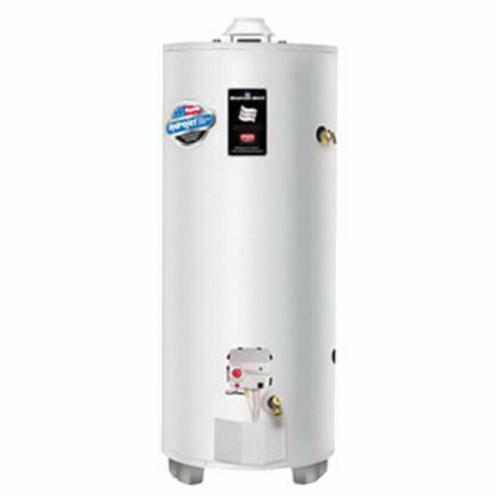

Bradford White® Gas Water Heater, 75 gal Capacity, 76000 Btu/hr, 22.3 kW, 135 gal First Hour Delivery, 0.59 Energy Factor, 82 gph Recovery Rate, 4 in Vent, Atmospheric Vent, NPT Connection, 150 psi, Recovery Efficiency: 80 %, Floor Mounting, Natural Gas Fuel, Piezo Ignition, 160 deg F, 26 in Dia x 62-5/8 in H x 29-1/4 in D, Domestic/Import: Domestic
- Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
- Microprocessor controls burner operation for consistent and accurate water temperature levels up to 160 deg F (71 deg C)
- Exclusive multi-color LED light indicates operation status/service required
- Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
- An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining
- 3/4 in (19 mm) NPT tapping's allow an easy connection for space heating applications (potable water only)
- Non-CFC foam covers the sides and top of the tank, reducing heat loss
- This results in less energy consumption, improved efficiencies and jacket rigidity
- Factory installed true dielectric fittings extend water heater life and simplify water line connections
- Allows inspection of tank interior and facilitates the removal of sediment deposits (RG2100H6N models only)
- Provides added protection against corrosion for long-term, trouble-free service
- T and P relief valve
