| Capacity | : | 19 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 25-3/4 in H |
| Element Material | : | Copper |
| Element Type | : | Screw-Type Immersion |
| Finish | : | Vitraglas® Enamel |
| Lead-Free/Contains Lead | : | Lead-Free |
| Material | : | Steel |
| Model | : | LE120L3-3 |
| Phase | : | 3 ph |
| Pressure Rating | : | 150 psi |
| Series | : | LE Series |
| Temperature Rating | : | 175 deg F |
| Voltage Rating | : | 240 V |
All models comply with NAECA III requirements. All models UL listed. These heaters are wired inter-locking (non-simultaneous, three-phase) 240 V with two 4500 W elements, unless otherwise specified. All water connections are 3/4 in NPT (19 mm). All electrical connections are 3/4 in (19 mm). All models certified at 300 psi test pressure (2068 kPa) and 150 psi working pressure (1034 kPa).

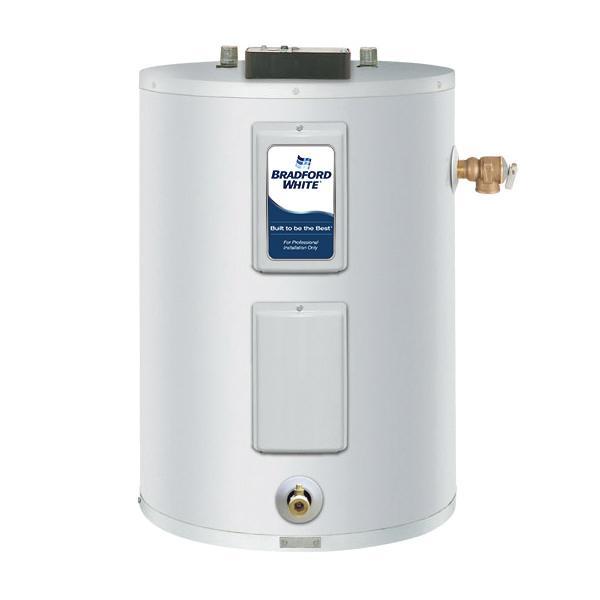

Bradford White® ElectriFLEX LD™ Light-Duty Lowboy Electric Water Heater, LE Series, Model: LE120L3-3, 19 gal Capacity, 240 V, 3 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Steel, Finish: Vitraglas® Enamel, Lead-Free, 175 deg F, 25-3/4 in H, Screw-Type Immersion Element, Copper Element
- Fully automatic controls
- Direct heat transfer with immersed elements
- Hydrojet® total performance system
- Vitraglas® tank lining with Microban®
- 1 in non-CFC foam insulation
- Protective anode rod
- Field convertible
- Temperature and pressure relief valve
