| Altitude | : | 10000 ft |
| Amperage Rating | : | 15 A |
| BTU Rating | : | 199999 Btu/hr |
| Capacity | : | 100 gal |
| Connection Type | : | NPT |
| Dimensions | : | 28-1/4 in Dia x 77-5/8 in H |
| Domestic/Import | : | Domestic |
| Efficiency | : | 97 % |
| Energy Star Compliant | : | Yes |
| Finish | : | Vitraglas® Glass |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas, Natural Gas |
| Ignition System | : | Electronic |
| Ignition Type | : | Direct Spark Gas |
| Material | : | CPVC |
| Power Rating | : | 58.6 kW-hr |
| Pressure Rating | : | 150 psi |
| Series | : | EF Series |
| Temperature Rating | : | 180 deg F |
| Vent Size | : | 3 in |
| Vent Type | : | Power Direct |
| Voltage Rating | : | 120 V |

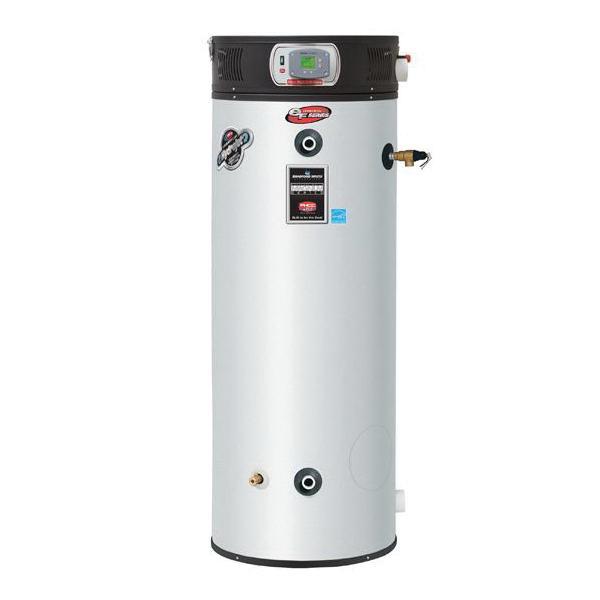

Bradford White® Gas Water Heater, EF Series, 100 gal Capacity, 199999 Btu/hr, 58.6 kW-hr, 97 % Efficiency, 3 in Vent, Power Direct Vent, 15 A, 120 V, 60 Hz, NPT Connection, 150 psi, Energy Star Compliant: Yes, Liquid Propane Gas, Natural Gas Fuel, Electronic Ignition System, Direct Spark Gas Ignition, CPVC, Finish: Vitraglas® Glass, 180 deg F, 28-1/4 in Dia x 77-5/8 in H, Domestic/Import: Domestic, 10000 ft Altitude
- Thermal efficiency up to 97% ultra high-efficiency results in less fuel consumption and greater hot water recovery
- BMS integration via Modbus standard, BACnet® compatible via gateway kit
- ICON HD® intelligent proven design combines temperature control, diagnostic codes and system ignition functions into a single control board with a digital LCD display
- Protective powered anodes - each eF Series® model is provided with two powered anode rods
- Factory installed Hydrojet® sediment reduction system cold water inlet sediment reducing device helps prevent sediment build-up in the tank
- Vitraglas® lining an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water
- This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600 deg F (871 deg C)
- Direct spark ignition for improved operational dependability and durability
- Operation mode - two different digitally displayed operation mode have the capability of adjusting the temperature setting up to 180 deg F (82 deg C) and adjusting the degree setting
- Service mode - eight different digitally displayed service screens can be easily cycled through by pressing the select button
- There is the capability of adjusting the temperature setting up to 180 deg F (82 deg C), adjusting the degree setting, locking the maximum temperature setting that can be adjusted in operation mode
- Displaying the temperature sensor reading, displaying the flame current and displaying diagnostic codes
- Pre-mix power burner a self-compensating negative regulation system automatically increases or decreases fuel flow when a change in combustion air is detected
- This provides the range for optimum combustion and efficiency (automatic high-altitude compatibility up to 10000 ft/3048 m)
- Venting versatility the eF Series® can vent vertically or horizontally with either 2 in, 3 in, 4 in or 6 in (51 mm, 7 6mm, 107 mm or 152 mm)
- PVC, CPVC, polypropylene, stainless steel or ABS (not approved for Canada) vent pipe and is approved for direct vent closed combustion applications or those applications that require inside air for combustion
- The eF Series® is also approved for unbalanced venting, which means the air intake pipe doesn't have to be vented the same distance as the exhaust
- Three pass fire tube heat exchanger system the three pass heat exchanger system keeps the hot combustion gases moving at a high-velocity
- The combination of high-turbulence and velocity causes an enormous rate of heat transfer into the water
