| Amperage Rating | : | 1 A |
| BTU Rating | : | 9000 Btu/hr |
| CFM Rating | : | 1300 cfm |
| Connection Size | : | 1/4 in, 1/2 in, 3/4 in, 7/8 in |
| Connection Type | : | MNPT x OD Tube |
| Dimensions | : | 16 in H x 45-1/2 in L x 14-11/16 in D |
| Fins per Inch | : | 6 FPI |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/15 hp |
| Model | : | LET090 |
| Number of Fans | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 182 W |
| Series | : | LET Series |
| Voltage Rating | : | 208 to 230 V |

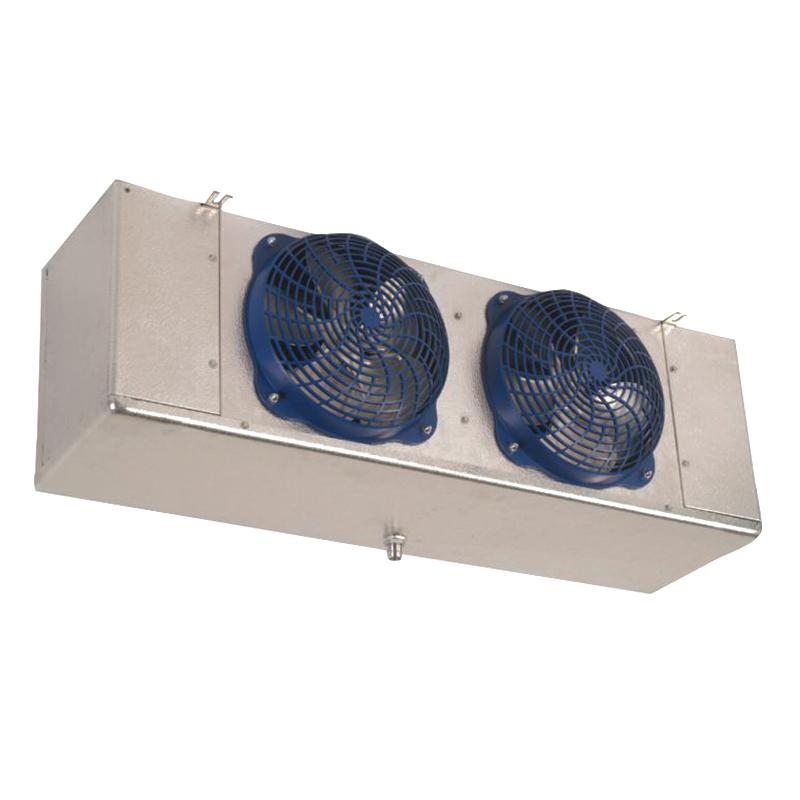

Bohn Walk-In Unit Cooler, Series: LET Series, Model: LET090, 208 to 230 V, 1 A, 182 W, 1/15 hp HP Rating, 60 Hz, 1 ph, 9000 Btu/hr, 1300 cfm CFM Rating, MNPT x OD Tube, 1/4 in, 1/2 in, 3/4 in, 7/8 in, 2 Number of Fans, 6 FPI Fins per Inch, 16 in H x 45-1/2 in L x 14-11/16 in D
- Cabinet design features front access panels on each side for easy access to electrical and refrigeration components
- All electrical components factory wired to terminal board and identified, making it easy to field wire the unit
- Liquid line solenoid wire harness is factory-installed for quick installation
- Pre-drilled holes on the back of the unit for room thermostat
- Coil heater slots have been enlarged for easier installation and replacement
- On four - six fan models, drain pan has a lanyard for easy and safe access
- Motors plug into wiring harness for easier servicing
- Sweat connections to reduce potential for leaks
- Molded fan guard design made of strong plastic material
- Heavy gauge grained aluminum cabinet cleans easily and looks attractive
- Internal panels are isolated for quiet operation
- Internally enhanced tubing and fin design for higher efficiency, reduced heater wattages
- Fixed defrost termination for electric, adjustable defrost termination for hot gas
- Extended drain pan heaters for more uniform defrost throughout the drain pan and additional heat in end compartments
- Large diameter drain hole (3/4 in ID) is located on the back of the unit
- Minimal height of the low profile Series makes it ideal for low ceiling coolers
- Vintage
