| Amperage Rating | : | 2.4 A |
| BTU Rating | : | 2300 Btu/hr |
| CFM Rating | : | 255 cfm |
| Coil Type | : | Coated |
| Connection Size | : | 1/2 in, 5/8 in |
| Connection Type | : | OD |
| Dimensions | : | 19.75 in H x 23.25 in W x 6.1 in D |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Material | : | Aluminum |
| Model | : | KMK23 |
| Number of Fans | : | 3 |
| Phase | : | 1 ph |
| Series | : | KMK Series |
| Voltage Rating | : | 115 V |
The thin line design allows the unit to be mounted behind the mullion with sufficient clearance for tray slides. A down flow fan arrangement is used with air drawn in at the top and discharged at the bottom. This design provides superior air circulation and ensures uniform temperature throughout the cabinet. This versatile design is also adaptable for mounting on the back wall or ends of a cooler. The method of air circulation ensures minimum box temperature rise when the cabinet doors are open. Ideal for bottled goods and beverage coolers.

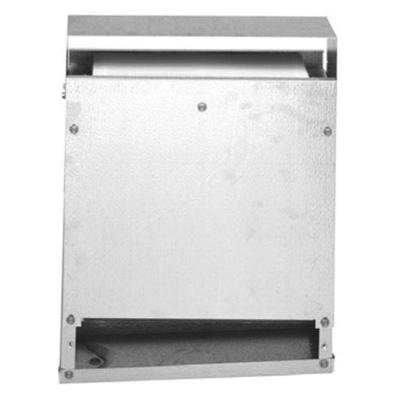

Bohn Reach-In Unit Cooler, Series: KMK Series, Model: KMK23, 115 V, 2.4 A, 60 Hz, 1 ph, 2300 Btu/hr, 255 cfm CFM Rating, OD, 1/2 in, 5/8 in, Coated Coil, 3 Number of Fans, Aluminum, Powder-Coated, 19.75 in H x 23.25 in W x 6.1 in D
- Light grained aluminum cabinets
- Powder-coated wire fan guard
- Stainless steel hardware
- Coils have full collar aluminum fins on expanded copper tubes
- Coated coil for enhanced protection in corrosive environments
- Refrigerant connection knockouts provided on both ends of unit
- Expansion valve can be mounted inside the cabinet
- Motors are thermally protected and permanently lubricated
- Internal junction box is provided for electrical connection
- Adjustable air deflector included provides different air patterns
- Sweat inlet connection to reduce leaks
