| BTU Rating | : | 60000 Btu/hr |
| Connection Size | : | 3/4 in |
| Connection Type | : | MNPT |
| Dimensions | : | 8-1/5 in L x 3-1/2 in W x 2-1/5 in D |
| Finish | : | Copper Braze-Plated |
| Material | : | 316L Stainless Steel |
| Model | : | BP400-10MT |
| Number of Plates | : | 10 |
| Pressure Rating | : | 435 psi |
| Temperature Rating | : | -310 to 450 deg F |

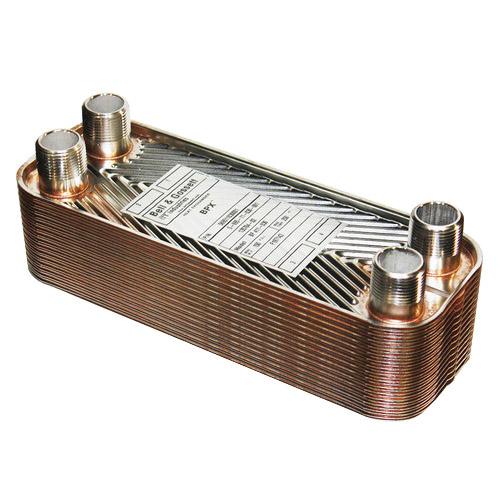

Bell & Gossett Heat Exchanger, Model: BP400-10MT, 60000 Btu/hr, 10 Plates, 3/4 in, MNPT, 435 psi, 316L Stainless Steel, Copper Braze-Plated, -310 to 450 deg F, 8-1/5 in L x 3-1/2 in W x 2-1/5 in D
- B and G type Hydronic BPX brazed plate heat exchangers offer a unique mounting system and the highest level of thermal efficiency and durability in a compact, low cost unit
- The unique integral mounting tabs and connection locations allow for easy installation to any hydronic heating panel without the need or cost of a separate mounting bracket
- The corrugated plate design provides very high heat transfer coefficients, resulting in a more compact design
- The unit's stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature
- High performance
- Compact design
- Solid self-contained unit
- Numerous applications
- 0.0076 gal/Channel volume
- 0.126 sq-ft surface area
