| Amperage Rating | : | 7.2 A |
| Dimensions | : | 16-1/2 in L x 22-3/4 in W x 12-15/16 in H |
| Discharge Size | : | 3/4 in |
| Flow Rate | : | 33 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/3 hp |
| Impeller Material | : | Bronze |
| Material | : | Iron |
| Maximum Head | : | 56 ft |
| Model | : | WC8-20-B |
| Phase | : | 1 ph |
| Series | : | Watchman Series |
| Speed Rating | : | 3540 rpm |
| Tank Size | : | 9 gal |
| Temperature Rating | : | 250 deg F |
| Voltage Rating | : | 115 V |

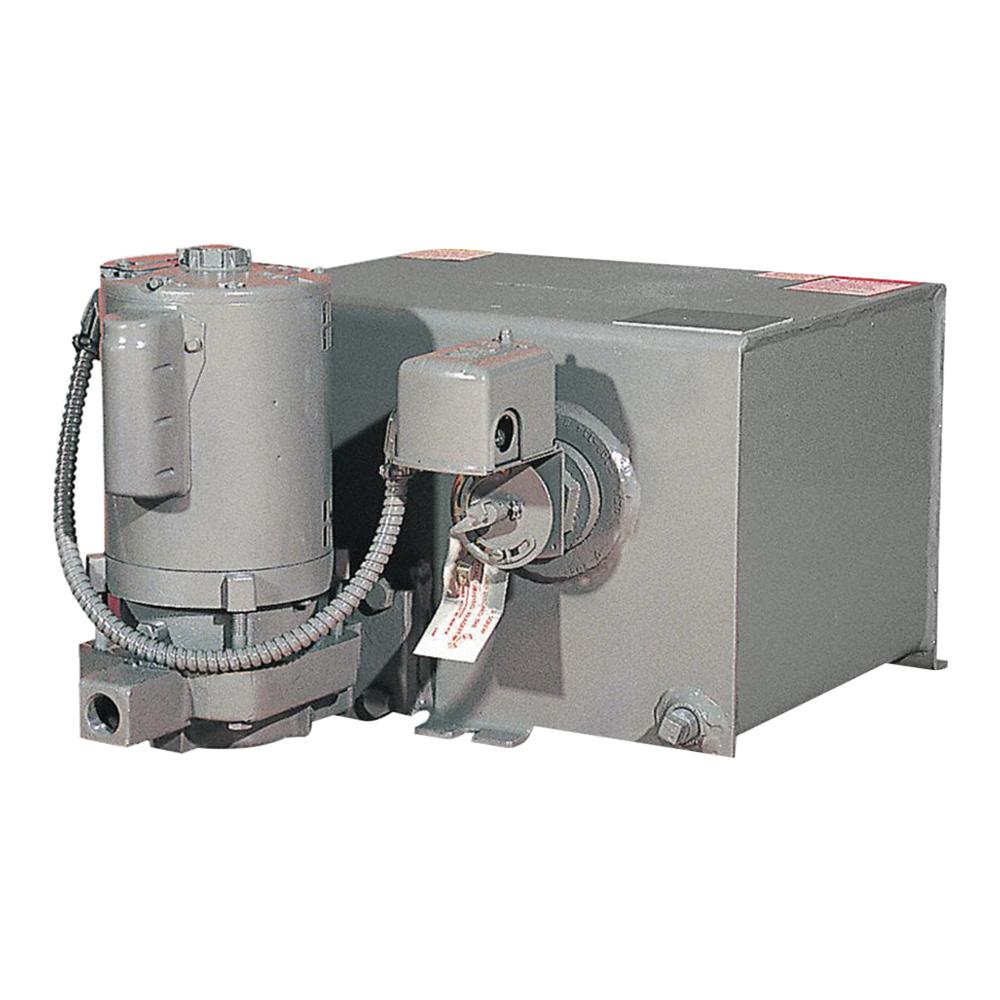

The Watchman condensate units feature cast-iron receivers that are warranted for 20 years from date of shipment against failure due to corrosion. They are supplied in 6, 9, 14 and 23 gal receiver sizes with low inlet heights for ease of installation. Pumps are the reliable and proven design Watchman close coupled centrifugal pumps with bronze impeller, bronze wearing ring, carbon/ceramic/mechanical seal-rated to 250 deg and cast-iron housing. Motors are vertically-mounted drip-proof ball bearing design with built-in overload protection and stainless steel shafts. Pumps are controlled by heavy-duty, double pole, externally adjustable float switches. Duplex units are provided with mechanical alternators as standard for two pump control. Units are normally factory or locally stocked.
Bell & Gossett Condensate Pump, Series: Watchman Series, Model: WC8-20-B, 115 V, 7.2 A, 1/3 hp HP Rating, 60 Hz, 3540 rpm Speed Rating, 1 ph, 33 gpm, 3/4 in Discharge, 56 ft Maximum Head, Bronze Impeller, 9 gal Tank, 250 deg F, 16-1/2 in L x 22-3/4 in W x 12-15/16 in H, Iron
- Up to 30 lbf/sq-in discharge
- Compact design, requires less floor space
- Choice of inlet and overflow locations on 14 gal size
- Easier to install with shorter pump manifolding on duplex units, simplified piping on all units
- Open drip-proof, single phase, capacitor start motor
- Four bolt flange mount
- 3/4 in threaded connection
- 20 lb/sq-in discharge pressure
