| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 6 in H |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 1/2 in |
| Pressure Rating | : | 12 psi, 30 psi |
| Series | : | F3 Series |
| Temperature Rating | : | 225 deg F |
Reducing valves fill the system to a pre-set pressure for optimum performance. Combination dual unit valves include pressure reducing valve and relief valve. Both Valves are equipped with an EPDM diaphragm. The diaphragm operated relief valve operates with a low differential between opening and closing pressures. The diaphragm operated pressure reducing valve is equipped with an inlet strainer and built-in low inlet pressure check valve.

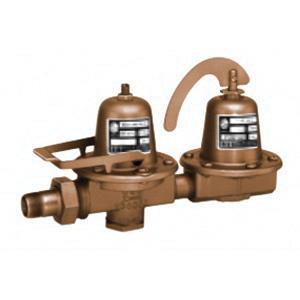

Bell & Gossett Combination Pressure Reducing Valve, F3 Series, 1/2 in Nominal, NPT Connection, 12 psi, 30 psi, Brass Body, Lead-Free, 225 deg F, 6 in H
- Fast-fill feature reduces start-up time and labor
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
- Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
- Flexible system connection
- Brass body construction is highly-resistant to corrosion-ideal for water systems
