| Body Material | : | Brass |
| Connection Type | : | NPT |
| Dimensions | : | 3 in L x 5-1/32 in H |
| Flow Rate | : | 5.5 to 6 gpm at 125 psi |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 10 to 25 psi |
| Seat Material | : | Brass |
| Series | : | B7-12 Series |
| Stem Material | : | Brass/EPDM |
| Temperature Rating | : | 225 deg F |

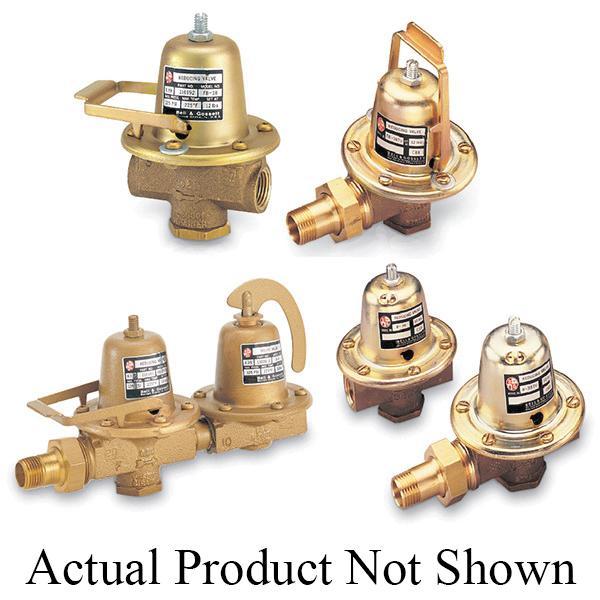

Bell & Gossett Pressure Reducing Valve, B7-12 Series, 3/4 in Nominal, NPT Connection, 10 to 25 psi, 5.5 to 6 gpm at 125 psi Flow Rate, Brass Body, Brass Seat, Brass/EPDM Stem, Lead-Free, 225 deg F, 3 in L x 5-1/32 in H
- Fast fill feature reduces start-up time and labor
- Low inlet pressure check valve help prevent loss of system pressure if the supply water drops below system pressure
- Convenient cleanable strainer is designed to prevent dirt and sediment from entering the system
- Brass body construction is highly-resistant to corrosion-ideal for water systems
- Reducing valves protect heating and plumbing systems against excessive line pressures
- Equipped with built-in-strainer and low inlet pressure check valve
- They are factory set at specified limits although adjustment is easily made
- Construction-cast brass body, with special insert diaphragm, EPDM check valve, brass seat, brass with EPDM insert stem, brass valve plate, strainer and strainer nut wetted parts and steel non-wetted parts
