| Additional Information | : | Polypropylene Impeller Material |
| Amperage Rating | : | 1.9 A |
| Connection Size | : | 2 in |
| Connection Type | : | Flanged |
| Dimensions | : | 16-5/8 in L |
| Flow Rate | : | 0 to 75 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Material | : | Iron |
| Maximum Pressure | : | 125 psi |
| Model | : | 2NFI |
| Motor Speed Rating | : | 1725 rpm |
| Mounting Type | : | In-Line |
| Phase | : | 1 ph |
| Temperature Rating | : | 225 deg F |
| Voltage Rating | : | 115 VAC |

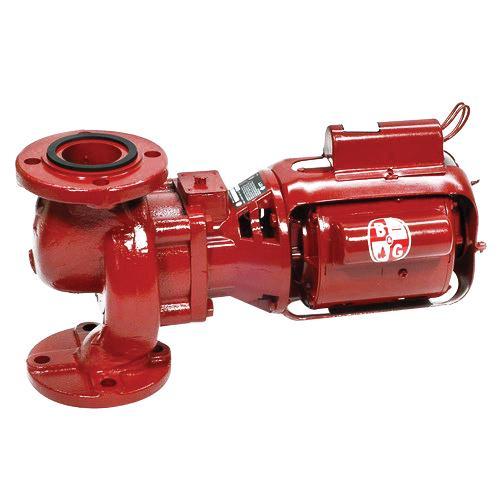

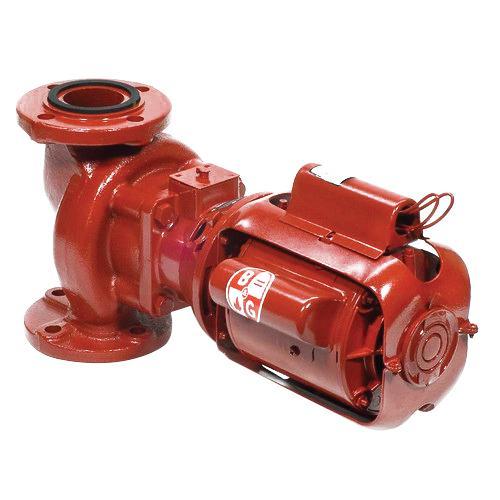

Bell & Gossett Circulator Pump, Model: 2NFI, 0 to 75 gpm Flow Rate, 115 VAC, 1.9 A, 60 Hz, 125 psi Maximum Pressure, 1725 rpm Motor Speed Rating, 1/6 hp, 2 in Connection, Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Iron, 16-5/8 in L, Additional Information: Polypropylene Impeller Material
- Flexible spring noise dampening coupler adds to quiet operation
- Long bronze sleeve bearings maintain shaft alignment and longer life
- Precision ground pump shaft, oversized to provide large bearing surfaces ensuring long seal and bearing life
- Centrifugal impeller prevents air build-up at seal faces to assure long life
- Close tolerances minimize water seepage and maximum efficiency
- Three part pump assembly and 2-part motor bracket make servicing system quick and easy
- Three piece design
- Carbon on ceramic mechanical seal
- Heat treated carbon steel shaft
- Carbon steel shaft
