| Amperage Rating | : | 25 mA |
| Temperature Rating | : | 0 - 150 deg F |
| Voltage Rating | : | 5 VDC |

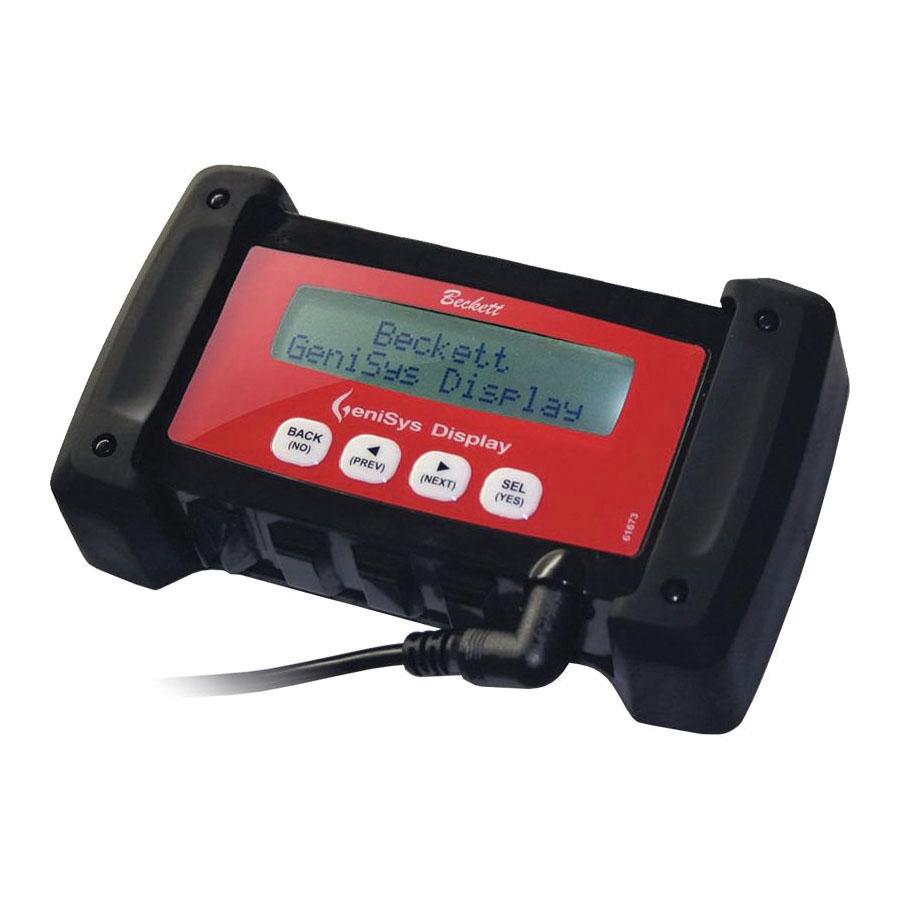

The Contractor Tool is designed as a portable diagnostic tool to help technicians program and troubleshoot Beckett oil primary controls. The screen shows current burner status, control timings, and burner cycle history. The programming mode allows a technician to customize both the pre-time and post-time settings.
Beckett® GeniSys Contractor Tool, 5 VDC, 25 mA, 0 - 150 deg F
- 32 character backlit alphanumeric display sealed pushbutton keypad
- Sealed pushbutton keypad
- Low voltage operation
- Continuous real-time cycle monitoring
- Continuous cad cell resistance reading
- Continuous AC line voltage read-out
- Real-time error notification
- Customizable pre-time (valve-on delay) and post-time (motor off delay)
- 15 cycle history monitoring
- Customizable lockout service message
- -22 to 150 deg F storage ambient temperature
- Moisture 5 - 85% RH, non-condensing and non-crystalizing
