| Amperage Rating | : | 35 mA |
| Dimensions | : | 3-1/2 in W x 2.86 in D x 4-1/2 in H |
| Frequency Rating | : | 50/60 Hz |
| Temperature Rating | : | -40 to 150 deg F |
| Voltage Rating | : | 120 VAC Input, 6 kV RMS, 20 kV Peak |

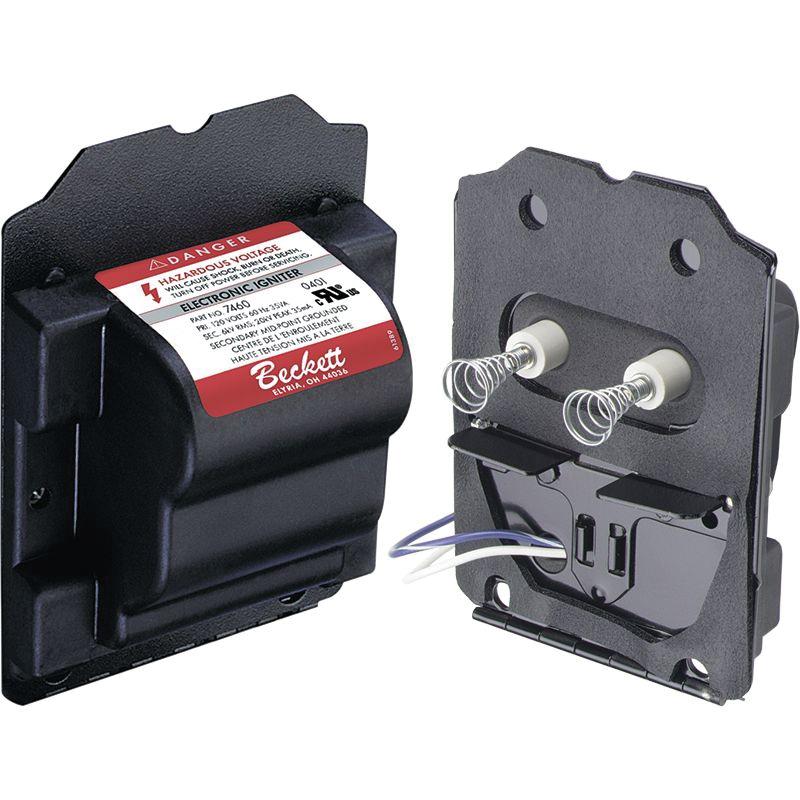

Beckett® Electronic Oil Igniter Kit, 120 VAC Input, 6 kV RMS, 20 kV Peak, 35 mA, 50/60 Hz, -40 to 150 deg F, 3-1/2 in W x 2.86 in D x 4-1/2 in H
- Small size and lightweight
- Adapts to multiple base plates making it the most versatile unit on the market, it will also fit on many other vendors transformer baseplates
- 20 kV peak rating guarantees quick and efficient ignition
- Vacuum encapsulation process using a synthetic resin provides resistance to moisture and excellent heat dissipation and electrical insulation
- Case material is a high-temperature thermoplastic that provides high-impact strength and scratch-resistance and is impenetrable to most chemical
- Case design has "breakout" sections at the rear and side for lead wire exit and a hood to neatly cover and protect these wires where required
