| Body Material | : | Brass |
| Connection Type | : | MPT x Nipple |
| Nominal Size | : | 1/2 x 3/8 in |
| Operator Type | : | Hand Wheel |
| Pressure Rating | : | 10 psi |
| Seal Material | : | FKM |
| Temperature Rating | : | 165 deg F Closure Ambient |
Fusible fire safety valves are designed to reduce fire damage by shutting off the flow of oil from the oil tank in the event of a fire. They are required by code in residential oil heating installations in conformance with NFPA 31. All valves are embossed with an arrow indicating the direction of oil flow. The seal stem uses a double seal washer/O-ring system with high-grade viton equivalent materials suitable for number two fuel oil and kerosene.

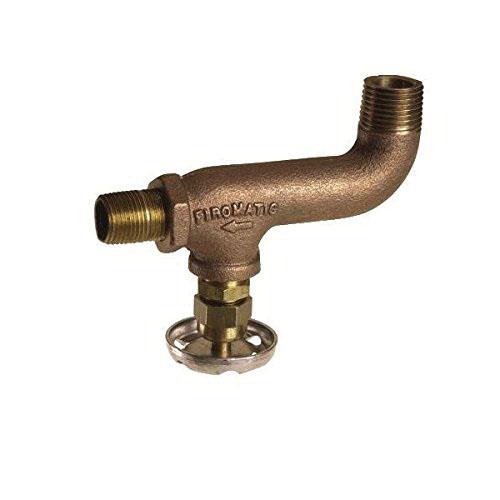

Beckett® Firomatic Fusible Tank Valve, 1/2 x 3/8 in Nominal, MPT x Nipple Connection, 10 psi, Brass Body, FKM Seal, Hand Wheel Operator, 165 deg F Closure Ambient
- Designed to be installed at the 1/2 in NPT bottom outlet tapping of most residential tanks
- All washers and O-rings are made of viton equivalent material
