| Body Material | : | Plastic |
| Capacity | : | 22 cu-in |
| Color | : | White |
| Cover Type | : | Decorator-Style, GFCI Receptacle |
| Enclosure Type | : | NEMA 3R |
| Mounting Orientation | : | Vertical |
| Mounting Type | : | Wall |
| Number of Gangs | : | 1 |
| Number of Plugs | : | 2 |
| Width | : | 7.012 in |

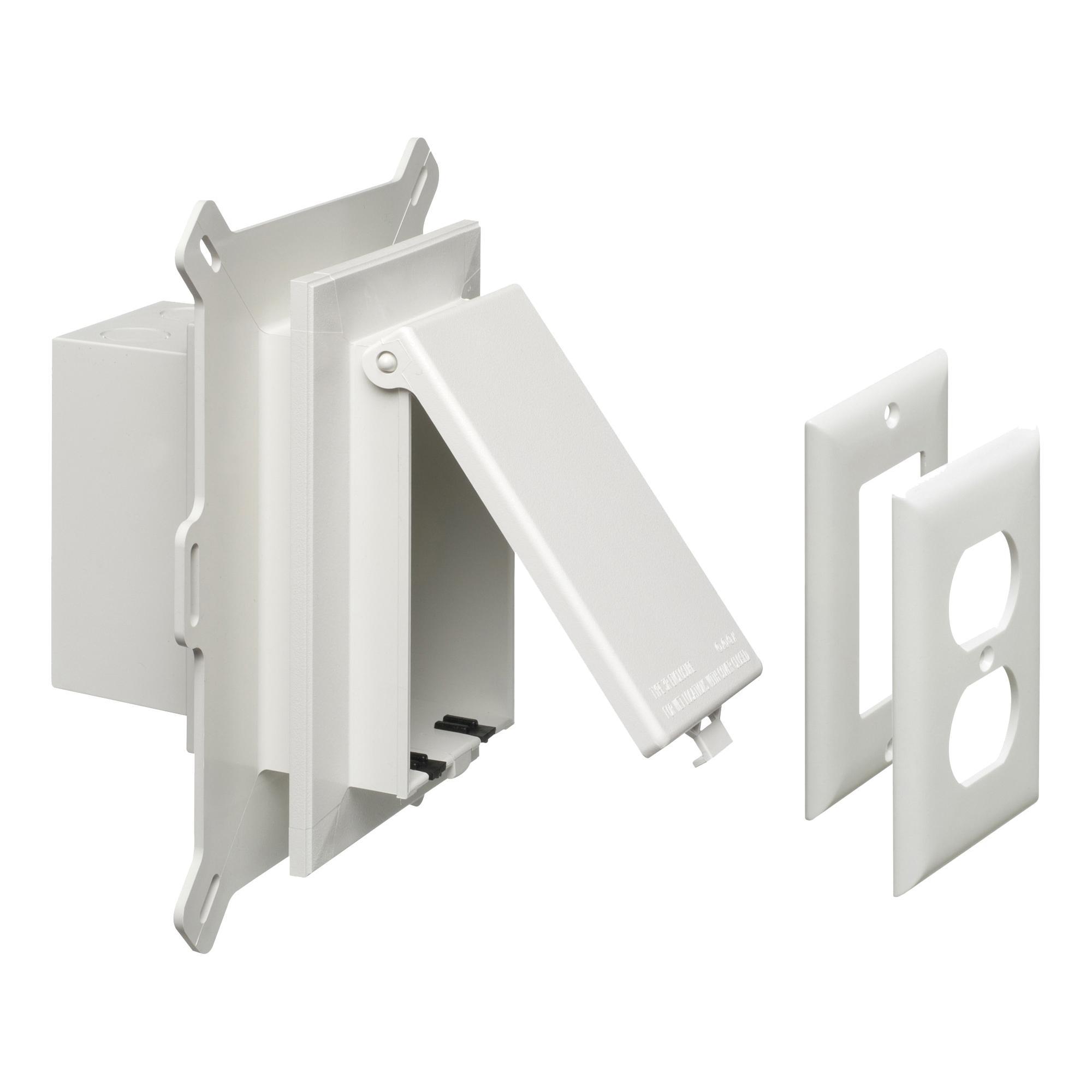

One-piece, 22 cu-in recessed electrical box with weather-proof-in-use extra duty cover for new siding applications. Non-metallic cover and base. Accepts most single-gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. Box and white cover are textured/paintable. UV rated plastic for long outdoor life.
Arlington IN BOX™ Recessed Non-Metallic Box, 1 Gangs, 2 Number of Plugs, 7.012 in Width, NEMA 3R, Decorator-Style, GFCI Receptacle Cover, Wall Mount, Vertical Mount, 22 cu-in, Plastic Body, White

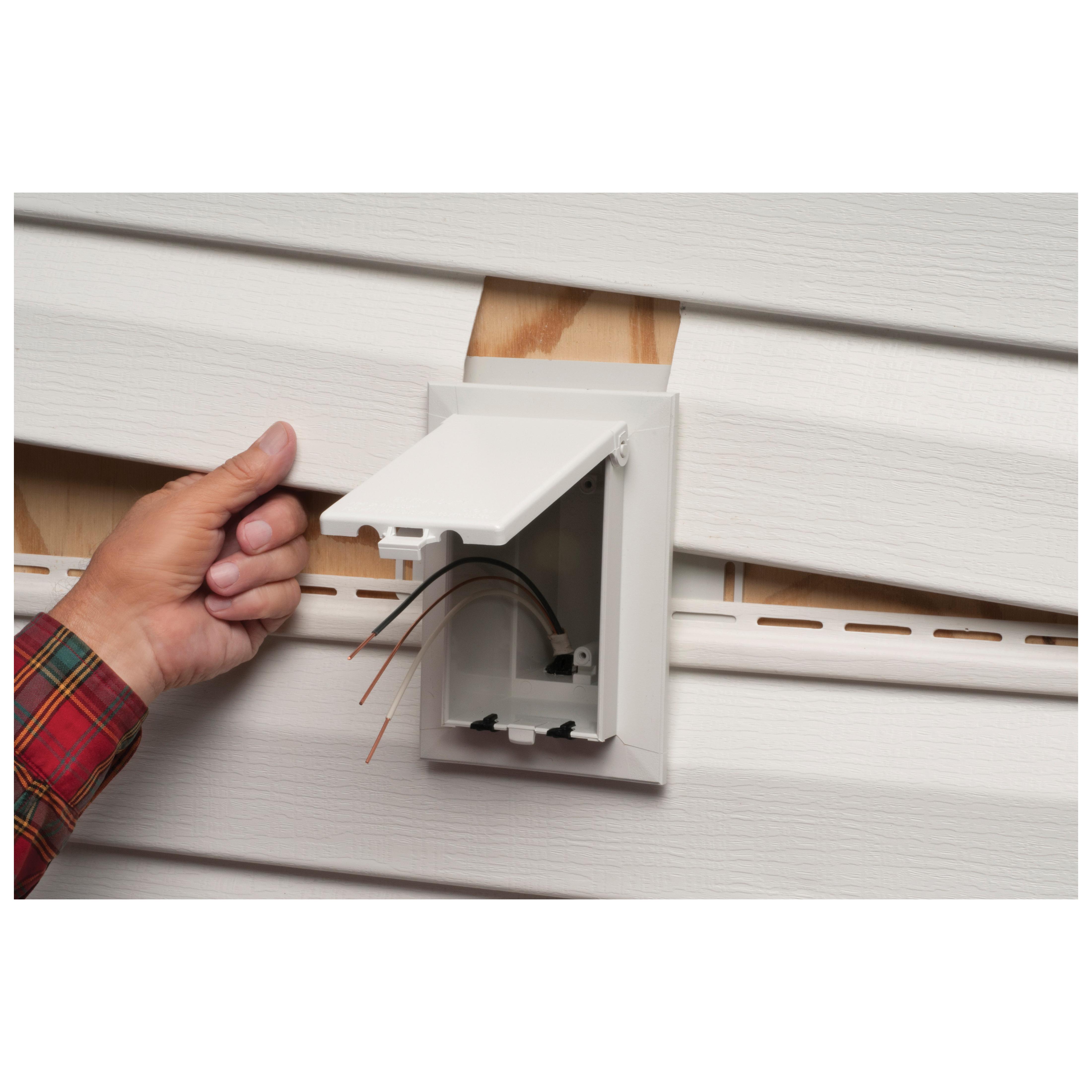

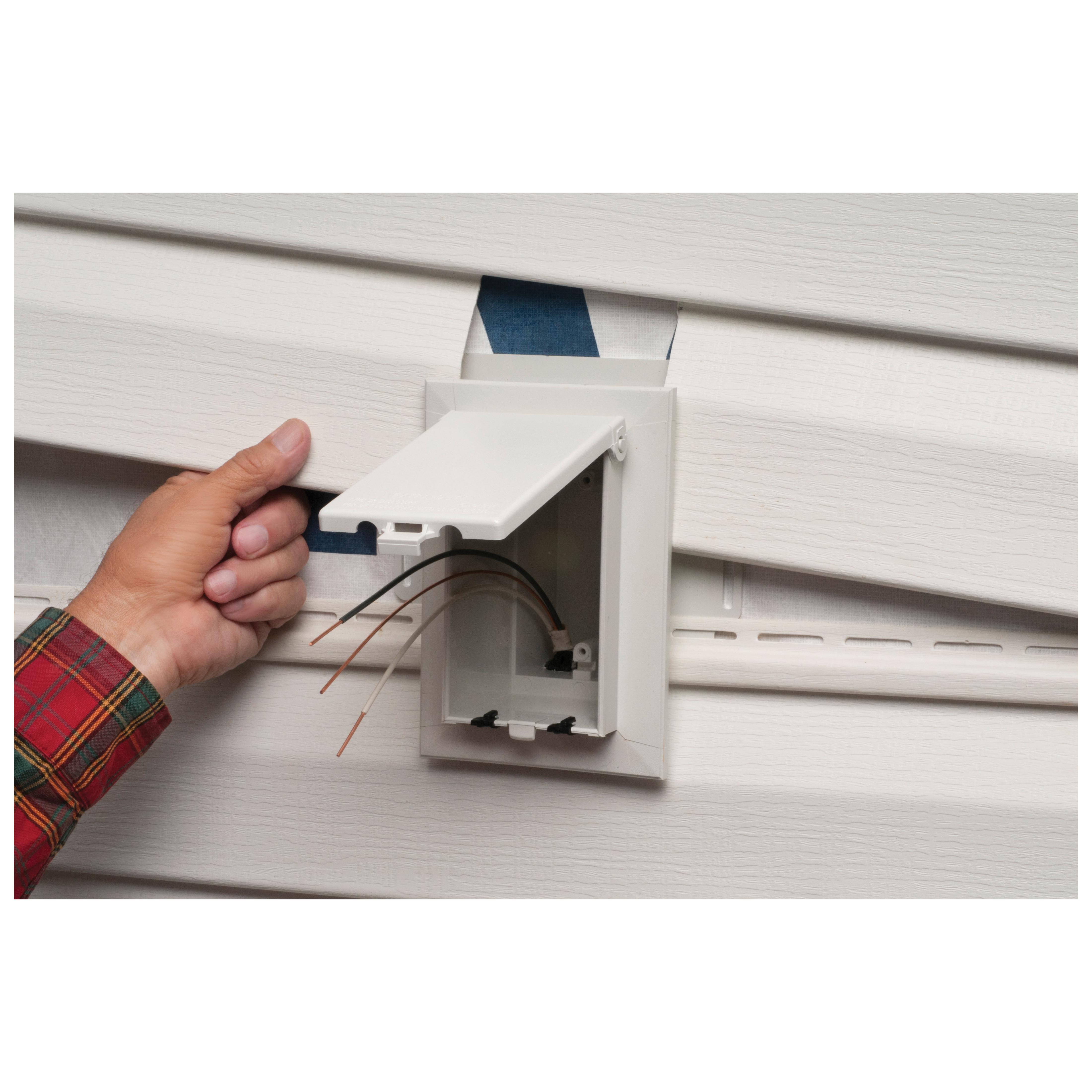

- Low profile inbox for new vinyl siding construction
- Vertical with weather-proof while in use extra duty clear cover
- In box's one-piece assembly replaces the installation of an electrical box, siding block and bubble cover assembly
- Installs in the wall, so less of it shows outside
- Outer flange covers cut ends of siding
- Install option cover is removable for easier device installation
- No gaskets required
