| Amperage Rating | : | 5 A |
| BTU Rating | : | 120000 Btu/hr |
| Capacity | : | 71 gal |
| Connection Type | : | NPT |
| Dimensions | : | 27-3/4 in Dia x 69-3/4 in H |
| Energy Star Compliant | : | No |
| Finish | : | Glass |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Electronic |
| Lead-Free/Contains Lead | : | Contains Lead |
| Phase | : | 1 ph |
| Pressure Rating | : | 160 psi |
| Recovery Efficiency | : | 80 % |
| Recovery Rate | : | 291 gph |
| Series | : | BTR Series |
| Temperature Rating | : | 120 to 180 deg F |
| Vent Diameter | : | 6 in |
| Voltage Rating | : | 120 V |
The Master-Fit® BTR series provides outstanding performance and maximum installation flexibility for both new construction and replacement applications. Multiple options for placement of water connections and low installation clearances are additional installer-friendly features.

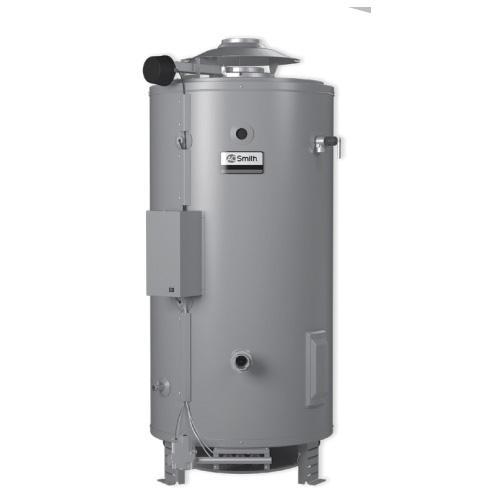

AO Smith® Dampered Water Heater, BTR Series, 71 gal Capacity, 120000 Btu/hr, 291 gph Recovery Rate, 5 A, 120 V, 60 Hz, 1 ph Phase, NPT Connection, 160 psi, Energy Star Compliant: No, Recovery Efficiency: 80 %, 6 in Vent Diameter, Natural Gas Fuel, Electronic Ignition, Finish: Glass, Contains Lead, 120 to 180 deg F, 27-3/4 in Dia x 69-3/4 in H
- Low profile draft diverter helps for installation in tight spaces
- Automatic motorized flue damper helps minimize standby heat loss
- Hot and cold water connections can be made through front, top or back of unit
- Eliminator™ system operates when cold water is connected through front
- Exclusive process provides superior protection against corrosion
- CoreGard™ anode rods with stainless steel core provide additional corrosion protection
- Eliminates standing pilot, saves energy
- Provides flame failure response in less than 1 s
- Designed to significantly reduce or eliminate sediment buildup inside the tank
- Reduced sediment buildup maintains rated thermal efficiency and reduces water heating costs
- Self-cleaning system maximizes tank life
- Manual reset gas shut-off device prevents excessive water temperature
- Adjustable thermostat with 120 to 180 deg F range
- Gas pressure regulator and pilot filter
- Allows easy access to tank interior for cleaning
