| Amperage Rating | : | 5 A |
| BTU Rating | : | 199900 Btu/hr |
| Capacity | : | 100 gal |
| Connection Type | : | NPT |
| Dimensions | : | 27-3/4 Dia x 76-1/2 in H |
| Efficiency | : | 97 % |
| Energy Star Compliant | : | Yes |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Steel |
| Mounting Type | : | Top |
| Power Rating | : | 58 kW |
| Pressure Rating | : | 160 psi |
| Recovery Efficiency | : | 97 % |
| Recovery Rate | : | 168 to 783 gph |
| Series | : | 300/301 Series |
| Temperature Rating | : | 90 to 180 deg F |
| Vent Size | : | 3 in |
| Vent Type | : | Power |
| Voltage Rating | : | 120 V |

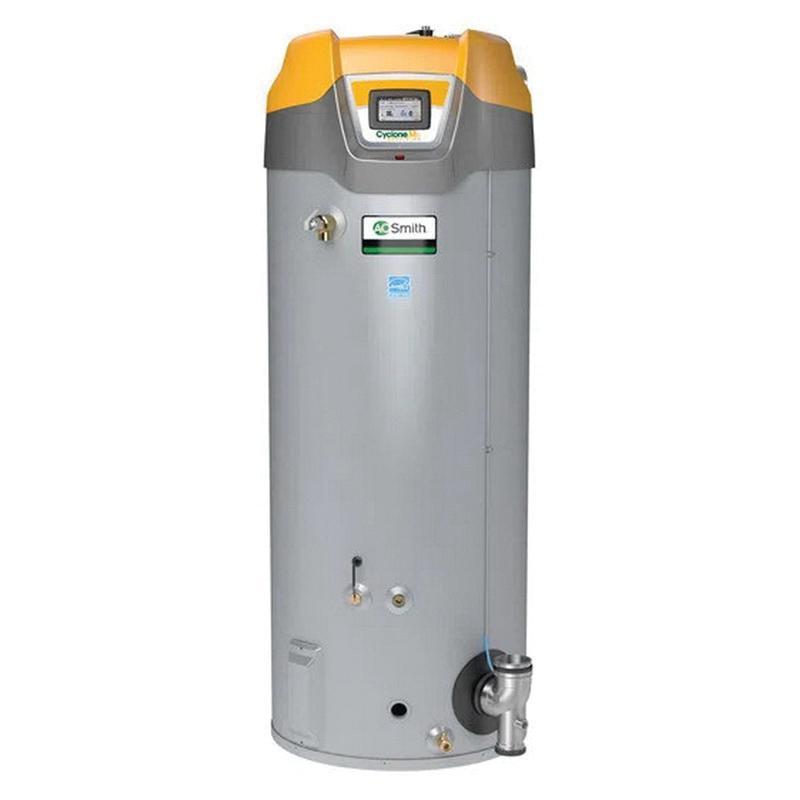

The full line of AO Smith® CYCLONE® Mxi condensing water heaters has been designed to provide years of dependable service and feature industry leading technology. The unique helical coil heat exchanger limits weld joints for optimal service life while maximizing heat transfer. CYCLONE® is the industry leader in high-efficiency commercial water heating. The current Mxi modulating model adjust firing rate to the specific demand further increasing efficiency and money savings.
AO Smith® Gas Water Heater, 300/301 Series, 100 gal Capacity, 199900 Btu/hr, 58 kW, 168 to 783 gph Recovery Rate, 97 % Efficiency, 3 in Vent, Power Vent, 5 A, 120 V, 60 Hz, NPT Connection, 160 psi, Energy Star Compliant: Yes, Recovery Efficiency: 97 %, Top Mounting, Natural Gas Fuel, Direct Spark Ignition, Steel, Finish: Painted, 90 to 180 deg F, 27-3/4 Dia x 76-1/2 in H
- Advanced control system with touchscreen display and iCOMM™ remote monitoring capabilities
- Submerged combustion chamber with helical heat exchanger coil
- Intelligent demand response (IDR) senses large water draws and adjusts temperature
