| Amperage Rating | : | 5 A |
| BTU Rating | : | 150000 Btu/hr |
| Capacity | : | 100 gal |
| Connection Type | : | NPT |
| Dimensions | : | 27-3/4 in Dia x 76-1/2 in H |
| Efficiency | : | 96 % |
| Energy Star Compliant | : | Yes |
| Finish | : | Painted |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Steel |
| Mounting Type | : | Top |
| Power Rating | : | 44 kW |
| Pressure Rating | : | 160 psi |
| Recovery Efficiency | : | 96 % |
| Recovery Rate | : | 127 to 594 gph |
| Temperature Rating | : | 90 to 180 deg F |
| Vent Size | : | 3 in |
| Vent Type | : | Power |
| Voltage Rating | : | 120 V |

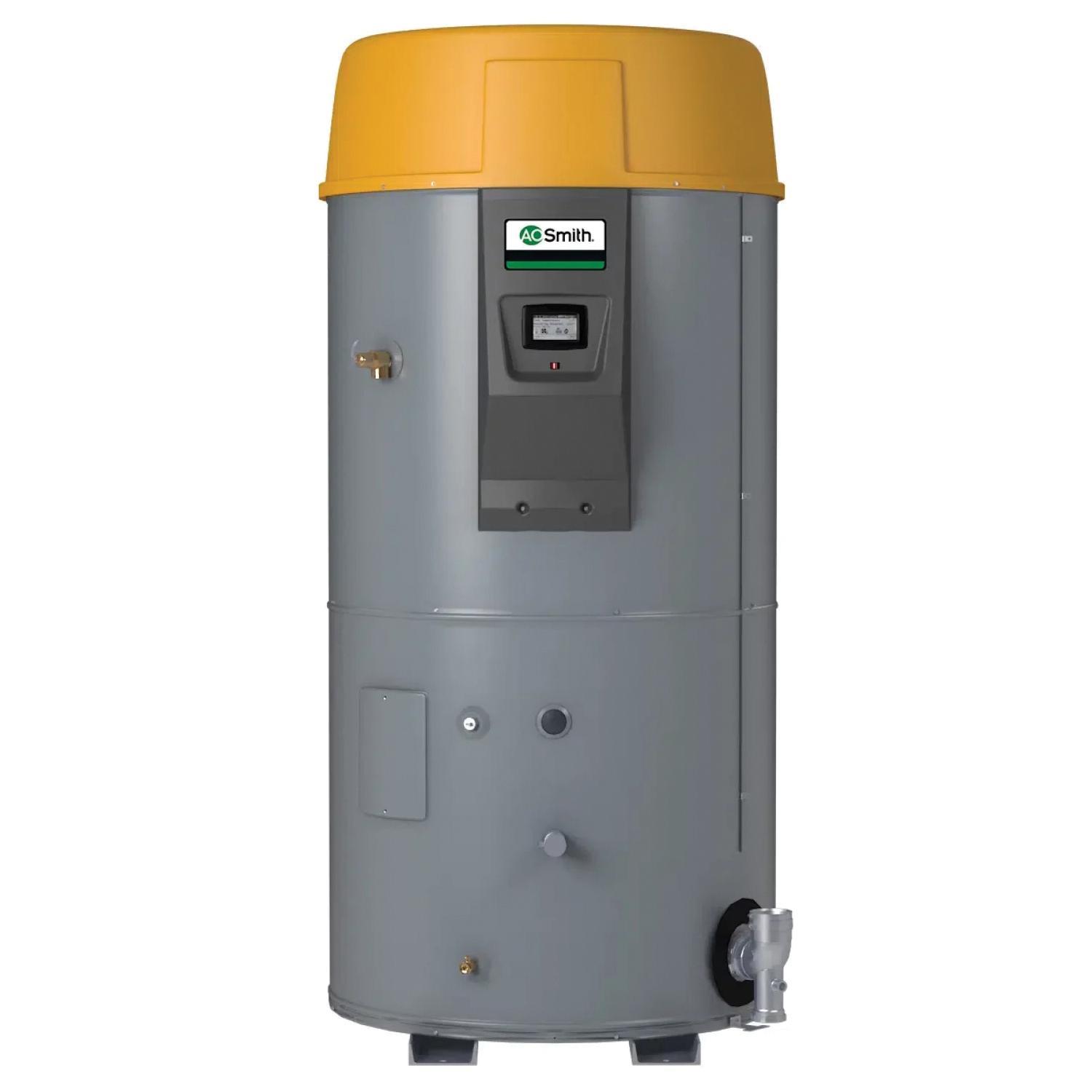

AO Smith® Gas Water Heater, 100 gal Capacity, 150000 Btu/hr, 44 kW, 127 to 594 gph Recovery Rate, 96 % Efficiency, 3 in Vent, Power Vent, 5 A, 120 V, 60 Hz, NPT Connection, 160 psi, Energy Star Compliant: Yes, Recovery Efficiency: 96 %, Top Mounting, Natural Gas Fuel, Direct Spark Ignition, Steel, Finish: Painted, 90 to 180 deg F, 27-3/4 in Dia x 76-1/2 in H
- Advanced control system with touchscreen display and iCOMM™ remote monitoring capabilities
- Submerged combustion chamber with helical heat exchanger coil
- Intelligent demand response (IDR) senses large water draws and adjusts temperature
- Receive leak detection alerts with optional leak detection kit
