| Acceptance Factor | : | 0.5 |
| Capacity | : | 15 gal |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPTM |
| Diaphragm Material | : | EPDM |
| Dimensions | : | 8 in Dia x 13 in H |
| Domestic/Import | : | Domestic |
| Finish | : | Urethane Top-Coated |
| Material | : | Steel |
| Pressure Rating | : | 100 psig |
| Series | : | EX Series |
| Temperature Rating | : | 240 deg F |
The one that started it All™. Extrol® expansion tanks accept expanded fluid in closed loop hydronic systems to control pressure build-up, improve comfort and help reduce energy costs. Nearly seven-decades after inventing the first diaphragm expansion tank, AMTROL® lineup now includes specialty models engineered for modern, high efficiency systems. None of it would have been possible without Extrol® - the one that started it All™.

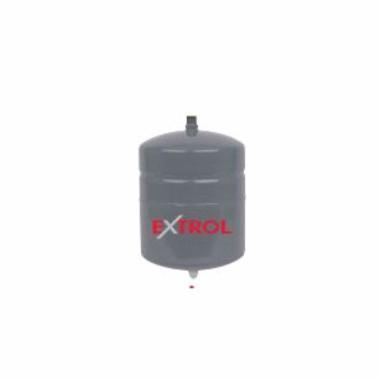

AMTROL® Inline Expansion Tank, EX Series, 15 gal Capacity, 1/2 in Connection, NPTM Connection, 0.5 Acceptance Factor, EPDM Diaphragm, Steel, Finish: Urethane Top-Coated, 100 psig, 240 deg F, 8 in Dia x 13 in H, Domestic/Import: Domestic
- Accepts expanded water as system temperature rises to reduce pressure build-up
- Helps reduce energy consumption and reduces system wear
- Suitable in propylene glycol applications with mixtures up to 50%
- Heavy-duty butyl/EPDM diaphragm
- Steel system connection
- Projection welded air valve
- 1 gal maximum acceptance volume
