| Additional Information | : | Square Shape |
| Capacity | : | 307 lb |
| Color | : | Gray |
| Dimensions | : | 32 in L x 32 in W x 8 in H |
| Material | : | Polypropylene |
| Specifications | : | Square |

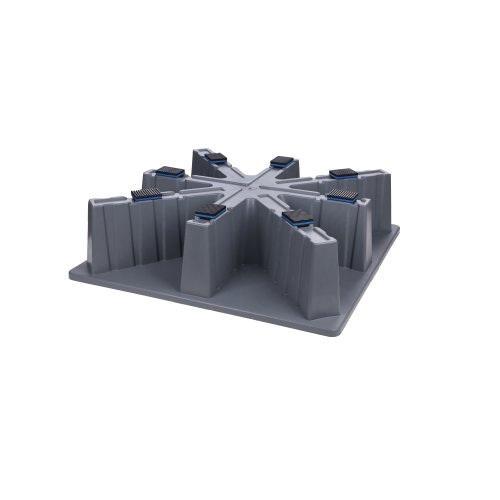

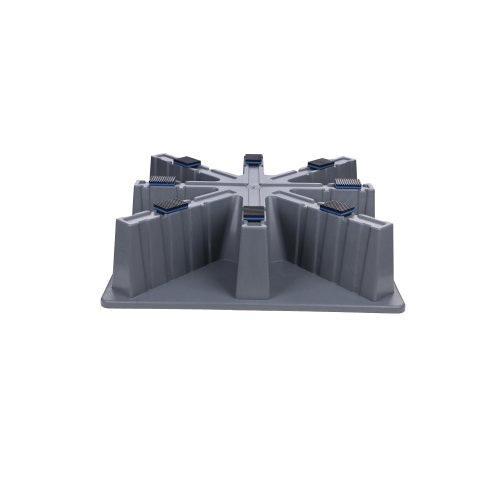

The Heat Pump Pad™ HP3232-8 is a 32 x 32 x 8 in base pad for heat pumps installed in snowy climates. Rather than the typical combination of an equipment pad and 6 in heat pump risers, the Heat Pump Pad™ provides a full 8 in of elevation in a square footprint. The star pattern of the integral risers allows for installation of equipment with different size footprints up to 32 in x 32 in. Risers are molded into the pad to form a solid single piece base.
ALLTEMP Base Pad, Specifications: Square, 307 lb Capacity, Polypropylene, Gray, 32 in L x 32 in W x 8 in H, Square Shape Additional Information
- Innovative star pattern of integral risers allows for installation of equipment with different size footprints up to 32 x 32 in
- Heat Pump Pad™ kit includes eight anti-vibration pads custom made to fit into the guide slots on the top of the integral risers and can be adjusted to equipment footprint
- The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode
- The nestable feature of the Heat Pump Pad™ makes for efficient shipping, transportation and warehousing
- Environmentally friendly, molded from recycled polypropylene material
- Unaffected by UV exposure or extreme weather
- Drillable making it easy to secure equipment to the pad if necessary
