| Additional Information | : | #8-32 x 3/8 in Mount, -40 to 80 deg C Storage Temperature |
| Amperage Rating | : | 23 mA |
| Frequency Rating | : | 60 Hz |
| Material | : | Porcelain |
| Mounting Type | : | Stud |
| Number of Poles | : | 2 |
| Primary Voltage | : | 120 V |
| Secondary Voltage | : | 10000 V |
| Series | : | 2721 Series |
| Temperature Rating | : | -30 to 40 deg C |
| VA Rating | : | 250 VA |

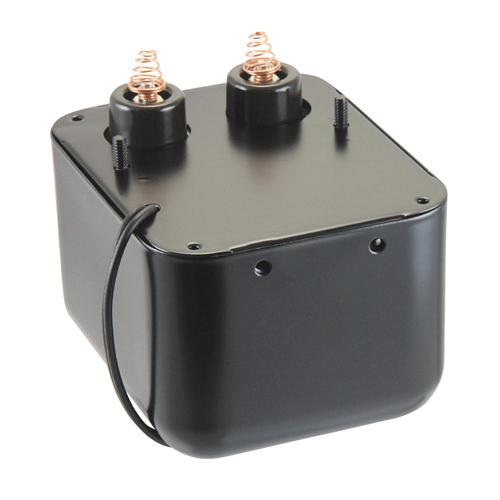

Allanson Production Transformer, Series: 2721 Series, 120 V Primary, 10000 V Secondary, 23 mA, 250 VA VA Rating, 60 Hz, Stud Mount, 2 Pole, Porcelain, -30 to 40 deg C, Additional Information: #8-32 x 3/8 in Mount, -40 to 80 deg C Storage Temperature
- Designed with high temperature wire
- Runs cooler, quieter and safer on all types of burners
- Designed to manufacturer's burner specifications
- Meets American and European noise emission standards offering superior EMI and RFI protection
- Mid point ground
- Dependable power
- 1/8 - 3/16 in loading air gap
- Constant-duty
- Small spring contact HV terminal
