| Additional Information | : | -10 to 40 deg C Ambient Temperature, Auto-Thermal Protection, 20/370 uF Capacitor, Clockwise/Counter-Clockwise Rotation |
| Amperage Rating | : | 11.8 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open Air Over |
| Frame | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | Class B |
| Mounting Type | : | Ring, Stud |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Shaft Size | : | 0.5 in Dia x 4.49 in L |
| Speed Rating | : | 1075 rpm |
| Voltage Rating | : | 115 V |

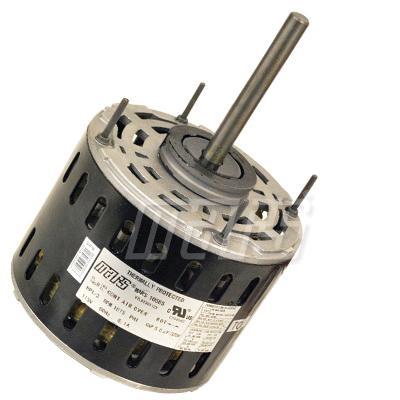

airMars® Direct Drive Blower Motor, 1 hp HP Rating, 115 V, 11.8 A, 60 Hz, 1 ph, 1075 rpm Speed Rating, 3 Speed, Open Air Over, 48 Frame, 0.5 in Dia x 4.49 in L Shaft, Sleeve Bearing, Ring, Stud Mount, Insulation Class: Class B, Additional Information: -10 to 40 deg C Ambient Temperature, Auto-Thermal Protection, 20/370 uF Capacitor, Clockwise/Counter-Clockwise Rotation
- Mars® direct drive furnace blower motors are three speed standard efficiency models
- All models are electrically reversible and include 2-1/4 in resilient rings for base-mounting
- These models have all angle sleeve bearings and have open air over enclosures
- 1/2 in extended through bolts
- Thermal overload protected
- Fan-duty, continuous, air over
